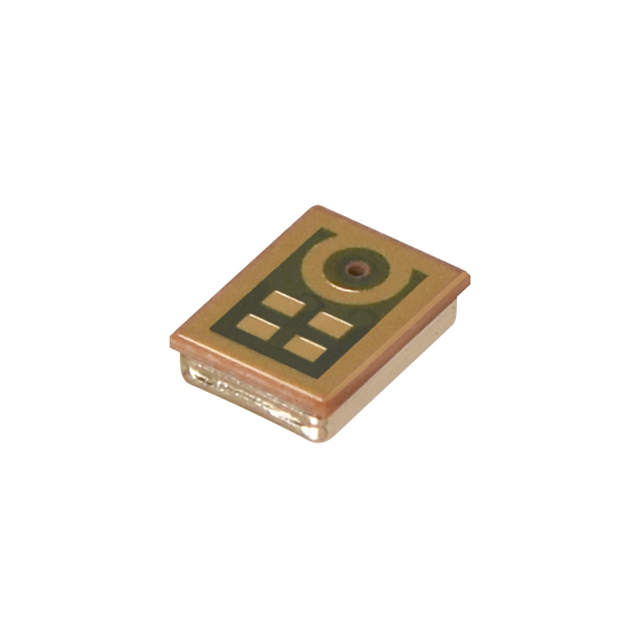

CMM-4030DB-26154-TR

Active

CUI Devices

MIC MEMS DIGITAL PDM OMNI -26DB

Search across all available documentation for this part.

Active

CUI Devices

MIC MEMS DIGITAL PDM OMNI -26DB

Technical Specifications

Parameters and characteristics for this part

Part	Current - Supply	Voltage - Rated	Frequency Range [Max]	Frequency Range [Min]	Type	Voltage Range [Min]	Voltage Range [Max]	Direction	Port Location	Sensitivity	Termination	Height (Max) [Max]	Height (Max) [Max]	S/N Ratio	Output Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Shape
CUI Devices CMM-4030DB-26154-TR	540 µA	2 VDC	10 kHz	100 Hz	MEMS (Silicon)	1.6 V	3.6 V	Omnidirectional	Bottom	-26 dB	Solder Pads	0.047 in	1.2 mm	64 dB	Digital PDM	4 mm	3 mm	0.118 in	0.157 "	Rectangular
CUI Devices CMM-4030DB-26154-TR	540 µA	2 VDC	10 kHz	100 Hz	MEMS (Silicon)	1.6 V	3.6 V	Omnidirectional	Bottom	-26 dB	Solder Pads	0.047 in	1.2 mm	64 dB	Digital PDM	4 mm	3 mm	0.118 in	0.157 "	Rectangular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Hz ~ 10 kHz Digital, PDM Microphone MEMS (Silicon) 1.6 V ~ 3.6 V Omnidirectional (-26dB ±1dB @ 94dB SPL) Solder Pads
