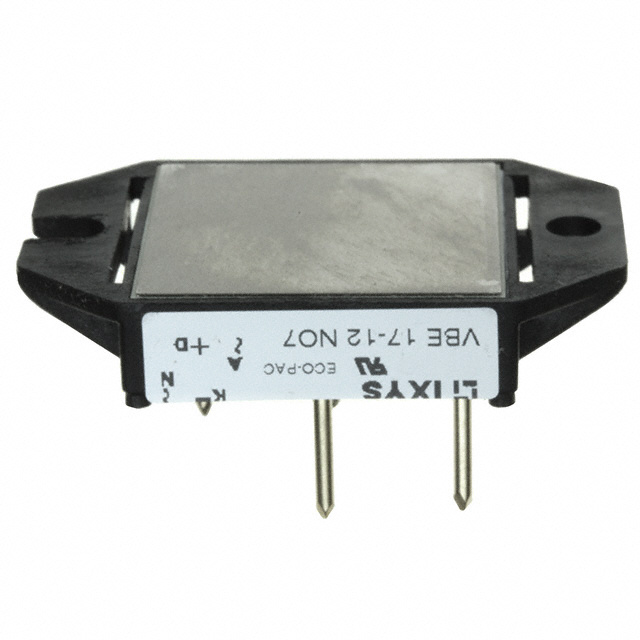

VBE17-12NO7

Active

IXYS

BRIDGE RECT 1P 1.2KV 19A ECOPAC1

Search across all available documentation for this part.

Active

IXYS

BRIDGE RECT 1P 1.2KV 19A ECOPAC1

Technical Specifications

Parameters and characteristics for this part

Specification	VBE17-12NO7

Current - Average Rectified (Io)	19 A
Current - Reverse Leakage @ Vr	60 µA
Diode Type	Single Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	ECO-PAC1
Supplier Device Package	ECO-PAC1
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	2.92 V
Voltage - Peak Reverse (Max) [Max]	1.2 kV

Part	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Technology	Current - Average Rectified (Io)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Forward (Vf) (Max) @ If	Diode Type	Current - Reverse Leakage @ Vr
IXYS VBE17-12NO7	1.2 kV	Chassis Mount	Standard	19 A	ECO-PAC1	150 °C	-40 °C	ECO-PAC1	2.92 V	Single Phase	60 µA
IXYS VBE17-06NO7	600 V	Chassis Mount	Standard	27 A	ECO-PAC1	150 °C	-40 °C	ECO-PAC1	2.09 V	Single Phase	60 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 11.97

General part information

Bridge Rectifier Single Phase Standard 1.2 kV Chassis Mount ECO-PAC1

Technical documentation and resources

No documents available
