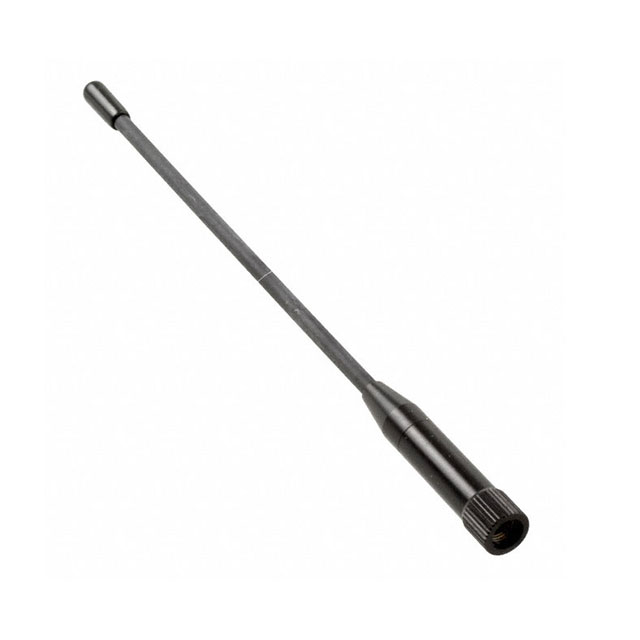

S463AH-868
ActiveNearson Inc.
2 GLUE STICK ANTENNA 2DBI 868MHZ ANTENNAS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S463AH-868
ActiveNearson Inc.
2 GLUE STICK ANTENNA 2DBI 868MHZ ANTENNAS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S463AH-868 |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 869 MHz |
| Frequency Range [Min] | 867 MHz |
| Gain | 2 dBic |
| Height (Max) [Max] | 6.929 in |
| Height (Max) [Max] | 176 mm |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Termination | RP-SMA Male |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
S463AH Series
RF ANTENNA Whip, Straight RP-SMA Male Connector Mount
Documents
Technical documentation and resources
