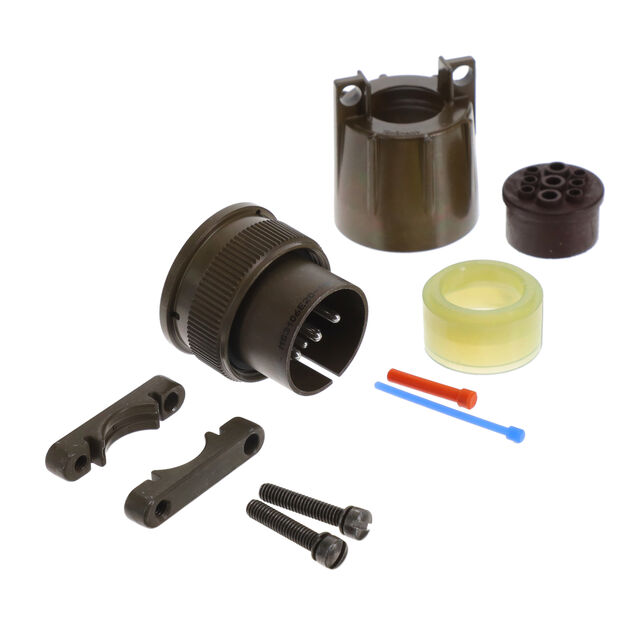

MS3106E20-18P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3106E20-18P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3106E20-18P |
|---|---|
| Applications | Military, Marine |
| Cable Opening [custom] | 0.656 in |
| Cable Opening [custom] | 16.66 mm |
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A, 23 A |
| Features | Cable Clamp, Coupling Nut, Backshell |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert [Max] | 18 |
| Shell Size - Insert [Min] | 20 |
| Shielding | Unshielded |
MS3106E20 Series
| Part | Shielding | Shell Material | Qualification | Ingress Protection | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Finish - Mating | Shell Finish | Primary Material | Grade | Number of Positions | Contact Material | Color | Shell Size - Insert [Max] [diameter] | Shell Size - Insert [Min] [diameter] | Connector Type | Insert Material | Applications | Cable Opening [custom] | Cable Opening [custom] | Orientation | Features | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | |||||||||||||||||||||||||||
Amphenol Industrial Operations | |||||||||||||||||||||||||||
Amphenol Industrial Operations | Unshielded | Aluminum Alloy | MIL-DTL-5015 | Environment Resistant | Free Hanging (In-Line) | -55 °C | 125 °C | 13 A 23 A | Silver | Olive Drab Chromate over Cadmium | Metal | Military | 9 | Copper Alloy | Olive Drab | 20 | 16 | Male Pins Plug | Neoprene | Marine Military | 0.656 in | 16.66 mm | N | Backshell Cable Clamp Coupling Nut | |||
Amphenol Industrial Operations | Unshielded | Aluminum Alloy | MIL-DTL-5015 | Environment Resistant | Free Hanging (In-Line) | -55 °C | 125 °C | 13 A 23 A | Silver | Olive Drab Chromate over Cadmium | Metal | Military | 9 | Copper Alloy | Olive Drab | Male Pins Plug | Neoprene | Marine Military | 0.656 in | 16.66 mm | N | Backshell Cable Clamp Coupling Nut | 18 | 20 | |||
Amphenol Industrial Operations | |||||||||||||||||||||||||||
Amphenol Industrial Operations | |||||||||||||||||||||||||||
Amphenol Industrial Operations | |||||||||||||||||||||||||||
Amphenol Industrial Operations | |||||||||||||||||||||||||||
Amphenol Industrial Operations | Unshielded | Aluminum Alloy | MIL-5015 | Environment Resistant | Free Hanging (In-Line) | -55 °C | 125 °C | Silver | Olive Drab Chromate over Cadmium | Metal | 4 | Copper Alloy | Olive Drab | Female Sockets Plug | Neoprene | Marine Military | 0.656 in | 16.66 mm | N | Backshell Cable Clamp Coupling Nut | 20-4 | ||||||
Amphenol Industrial Operations |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 42.40 | |
| 10 | $ 37.13 | |||
| 25 | $ 35.52 | |||
| 50 | $ 34.38 | |||
| 100 | $ 33.23 | |||
| 250 | $ 31.40 | |||
Description
General part information
MS3106E20 Series
9 Position Circular Connector Plug, Male Pins Solder Cup
Documents
Technical documentation and resources
