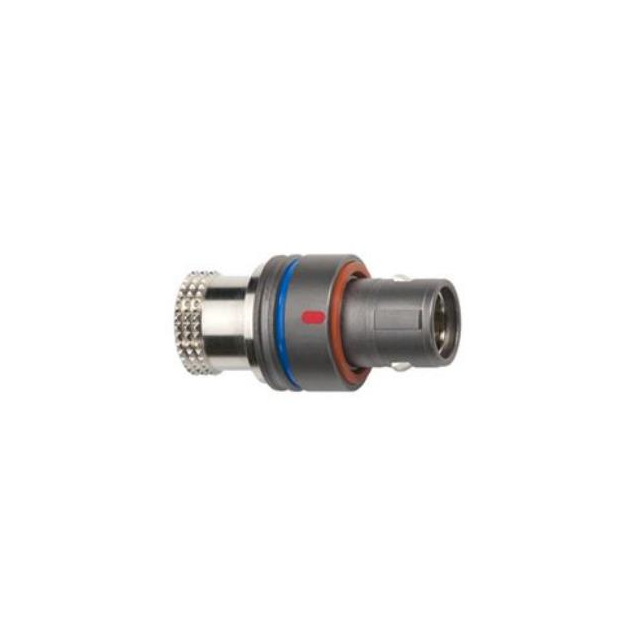

FGN.1F.305.YLC

Active

LEMO

CONN PLUG MALE 5POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FGN.1F.305.YLC

Active

LEMO

CONN PLUG MALE 5POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FGN.1F.305.YLC

Applications	Aerospace
Cable Opening [custom]	0.421 in
Cable Opening [custom]	10.7 mm
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	9 A
Fastening Type	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-15 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	305
Shielding	Shielded
Termination	Crimp

FGN.1F Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Ingress Protection	Material Flammability Rating	Contact Finish - Mating	Primary Material	Current Rating (Amps)	Orientation	Shell Size - Insert	Shielding	Shell Material	Number of Positions	Connector Type	Shell Finish	Insert Material	Termination	Mounting Type	Cable Opening [custom]	Cable Opening [custom]	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Fastening Type
LEMO FGN.1F.308.XLCS	1 µm	39.4 µin	Gray	IP67 - Dust Tight Waterproof	UL94 V-0	Gold	Metal	5 A	N	308	Shielded	Aluminum Alloy	8	Male Pins Plug	Nickel	Polyetheretherketone (PEEK)	Crimp	Free Hanging (In-Line)	0.421 in	10.7 mm	Brass	200 °C	-15 °C	Aerospace	Push-Pull
LEMO FGN.1F.305.YLC	1 µm	39.4 µin	Gray	IP67 - Dust Tight Waterproof	UL94 V-0	Gold	Metal	9 A	N	305	Shielded	Aluminum Alloy		Male Pins Plug	Nickel	Polyetheretherketone (PEEK)	Crimp	Free Hanging (In-Line)	0.421 in	10.7 mm	Brass	200 °C	-15 °C	Aerospace	Push-Pull
LEMO FGN.1F.305.XLC	1 µm	39.4 µin	Gray	IP67 - Dust Tight Waterproof	UL94 V-0	Gold	Metal	9 A	N	305	Shielded	Aluminum Alloy		Male Pins Plug	Nickel	Polyetheretherketone (PEEK)	Crimp	Free Hanging (In-Line)	0.421 in	10.7 mm	Brass	200 °C	-15 °C	Aerospace	Push-Pull
LEMO FGN.1F.303.XLC	1 µm	39.4 µin	Gray	IP67 - Dust Tight Waterproof	UL94 V-0	Gold	Metal	12 A	N	303	Shielded	Aluminum Alloy		Male Pins Plug	Nickel	Polyetheretherketone (PEEK)	Crimp	Free Hanging (In-Line)	0.421 in	10.7 mm	Brass	200 °C	-15 °C	Aerospace	Push-Pull
LEMO FGN.1F.308.YLC	1 µm	39.4 µin	Gray	IP67 - Dust Tight Waterproof	UL94 V-0	Gold	Metal	5 A	N	308	Shielded	Aluminum Alloy	8	Male Pins Plug	Nickel	Polyetheretherketone (PEEK)	Crimp	Free Hanging (In-Line)	0.421 in	10.7 mm	Brass	200 °C	-15 °C	Aerospace	Push-Pull
LEMO FGN.1F.307.YLC	1 µm	39.4 µin	Gray	IP67 - Dust Tight Waterproof	UL94 V-0	Gold	Metal	7 A	N	307	Shielded	Aluminum Alloy	7	Male Pins Plug	Nickel	Polyetheretherketone (PEEK)	Crimp	Free Hanging (In-Line)	0.421 in	10.7 mm	Brass	200 °C	-15 °C	Aerospace	Push-Pull
LEMO FGN.1F.307.CLC	1 µm	39.4 µin	Silver	IP67 - Dust Tight Waterproof	UL94 V-0	Gold	Metal	7 A	N	307	Shielded	Brass	7	Male Pins Plug	Chrome	Polyetheretherketone (PEEK)	Crimp	Free Hanging (In-Line)	0.421 in	10.7 mm	Brass	200 °C	-55 °C	Aerospace	Push-Pull
LEMO FGN.1F.308.XLCF	1 µm	39.4 µin	Gray	IP67 - Dust Tight Waterproof	UL94 V-0	Gold	Metal	5 A	N	308	Shielded	Aluminum Alloy	8	Male Pins Plug	Nickel	Polyetheretherketone (PEEK)	Crimp	Free Hanging (In-Line)	0.421 in	10.7 mm	Brass	200 °C	-15 °C	Aerospace	Push-Pull

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FGN.1F Series

5 Position Circular Connector Plug, Male Pins Crimp
