SMLK34WBECW1
ObsoleteRohm Semiconductor

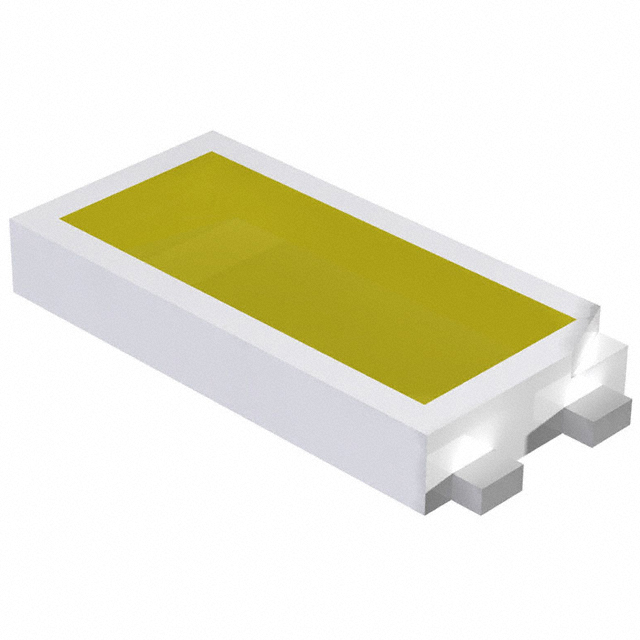

LED COOL WHITE 1808 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMLK34WBECW1
ObsoleteRohm Semiconductor
LED COOL WHITE 1808 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMLK34WBECW1 |
|---|---|
| Color | Cool, White |
| Configuration | Standard |
| Current - Test | 60 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Size [x] | 3.5 mm |
| Lens Size [y] | 1.5 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 5500 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1808 |
| Package / Case | 4520 Metric |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | 4520 |
| Supplier Device Package | 1808 |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
| Wavelength - Dominant | 8300 K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SMLK34 Series
White, Cool 8300K LED Indication - Discrete 3.4V 1808 (4520 Metric)
