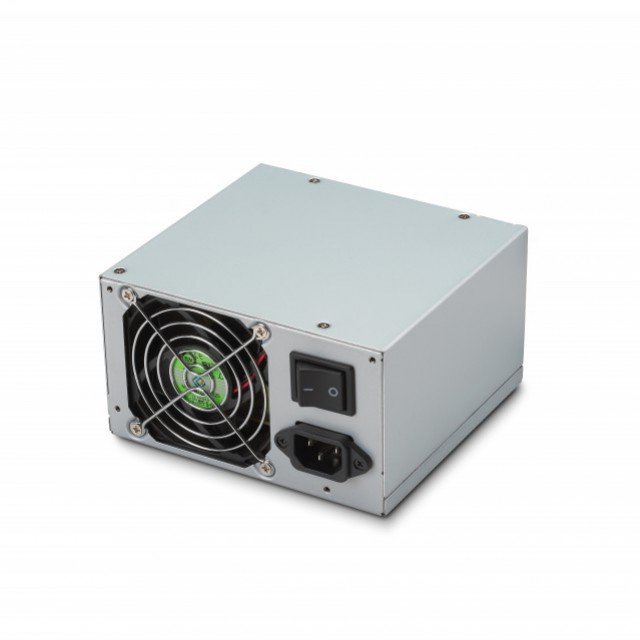

FSP500-70MPE
ActiveFSP Technology Inc.
AC/DC CNVT 3.3V 5V 2X12V 2X-5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FSP500-70MPE
ActiveFSP Technology Inc.
AC/DC CNVT 3.3V 5V 2X12V 2X-5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FSP500-70MPE |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | TUV, FCC, CE, VCCI, cURus |
| Current - Output 1 | 32 A |
| Current - Output 2 | 30 A |
| Current - Output 3 | 18 A |
| Current - Output 4 | 18 A |
| Current - Output 5 | 200 mA |
| Current - Output 6 | 800 mA |
| Efficiency | 78 % |
| Features | Standby Output, Universal Input, PFC |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 6 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 698 W |
| Size / Dimension [x] | 150 mm |
| Size / Dimension [x] | 5.91 " |
| Size / Dimension [y] | 5.51 " |
| Size / Dimension [y] | 140 mm |
| Size / Dimension [z] | 86 mm |
| Size / Dimension [z] | 3.39 " |
| Standard Number | 60950-1, 60601-1 |
| Type | ATX |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 3.3 V |
| Voltage - Output 2 | 5 V |
| Voltage - Output 3 | 12 V |
| Voltage - Output 4 | 12 V |
| Voltage - Output 5 | -5 V |
| Voltage - Output 6 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 322.29 | |
| 5 | $ 314.23 | |||
| 10 | $ 304.56 | |||
| 25 | $ 291.67 | |||
Description
General part information
FSP500 Series
ATX AC DC Converters 6 Output 3.3V 5V 12V 12V 90 ~ 264 VAC Input
