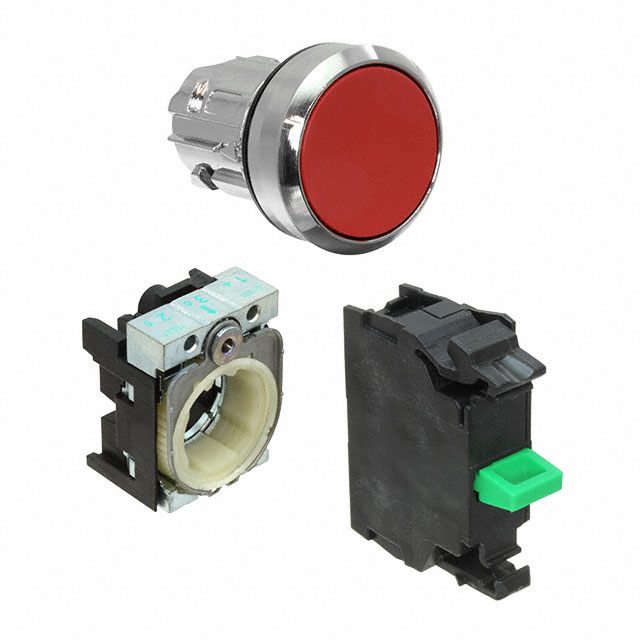

45-1131.2120.000.101

Active

EAO

SWITCH PUSH SPST-NO 10A 500V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

45-1131.2120.000.101

Active

EAO

SWITCH PUSH SPST-NO 10A 500V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45-1131.2120.000.101

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	10 A
Ingress Protection	IP69K, IP67, IP66
Mechanical Life	10000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

45-1131 Series

Part	Switch Function	Mounting Type	Type	Circuit	Actuator Marking	Termination Style	Voltage Rating - DC	Mechanical Life	Color - Actuator/Cap	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Voltage Rating - AC	Actuator Type
EAO 45-1131.1210.000.102	On-Mom	Panel Mount Front	Standard	SPST-NC	No Marking	Screw Terminal	500 V	10000000 Cycles	Black	10 A	70 °C	-25 °C	IP66 IP67 IP69K	500 V	Button Round
EAO 45-1131.1160.000.101	Off-Mom	Panel Mount Front	Standard	SPST-NO	No Marking	Screw Terminal	500 V	10000000 Cycles	Blue	10 A	70 °C	-25 °C	IP66 IP67 IP69K	500 V	Button Flush Round
EAO 45-1131.2160.000.101	Off-Mom	Panel Mount Front	Standard	SPST-NO	No Marking	Screw Terminal	500 V	10000000 Cycles	Blue	10 A	70 °C	-25 °C	IP66 IP67 IP69K	500 V	Button Flush Round
EAO 45-1131.3220.000.102	On-Mom	Panel Mount Front	Standard	SPST-NC	No Marking	Screw Terminal	500 V	10000000 Cycles	Red	10 A	70 °C	-25 °C	IP66 IP67 IP69K	500 V	Button Round
EAO 45-1131.3190.000.101	Off-Mom	Panel Mount Front	Standard	SPST-NO	No Marking	Screw Terminal	500 V	10000000 Cycles	White	10 A	70 °C	-25 °C	IP66 IP67 IP69K	500 V	Button Flush Round
EAO 45-1131.3120.000.102	On-Mom	Panel Mount Front	Standard	SPST-NC	No Marking	Screw Terminal	500 V	10000000 Cycles	Red	10 A	70 °C	-25 °C	IP66 IP67 IP69K	500 V	Button Flush Round
EAO 45-1131.2140.000.101	Off-Mom	Panel Mount Front	Standard	SPST-NO	No Marking	Screw Terminal	500 V	10000000 Cycles	Yellow	10 A	70 °C	-25 °C	IP66 IP67 IP69K	500 V	Button Flush Round
EAO 45-1131.3110.000.102	On-Mom	Panel Mount Front	Standard	SPST-NC	No Marking	Screw Terminal	500 V	10000000 Cycles	Black	10 A	70 °C	-25 °C	IP66 IP67 IP69K	500 V	Button Flush Round
EAO 45-1131.2120.000.101	Off-Mom	Panel Mount Front	Standard	SPST-NO	No Marking	Screw Terminal	500 V	10000000 Cycles	Red	10 A	70 °C	-25 °C	IP66 IP67 IP69K	500 V	Button Flush Round
EAO 45-1131.2120.000.102	On-Mom	Panel Mount Front	Standard	SPST-NC	No Marking	Screw Terminal	500 V	10000000 Cycles	Red	10 A	70 °C	-25 °C	IP66 IP67 IP69K	500 V	Button Flush Round

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.82
		10	$ 22.28
		25	$ 21.00
		50	$ 20.08
		100	$ 19.20
		250	$ 18.10
		500	$ 17.30

Description

General part information

45-1131 Series

Pushbutton Switch SPST-NO Standard Panel Mount, Front
