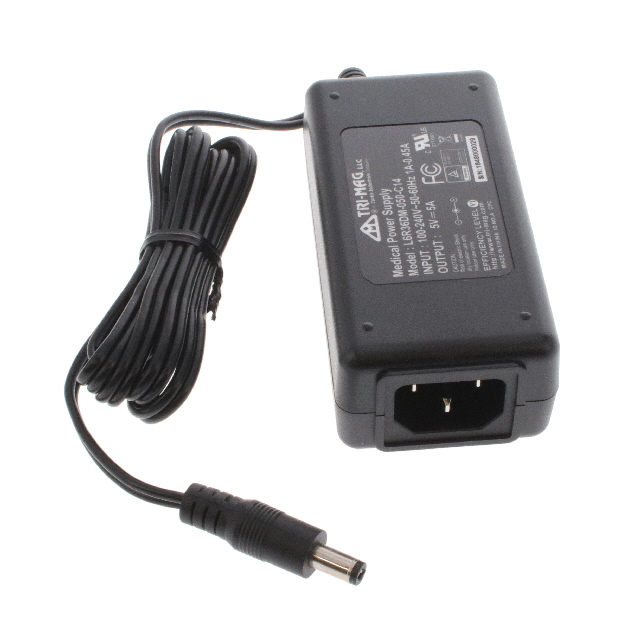

L6R36DM-050-C14

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 5V 25W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L6R36DM-050-C14

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 5V 25W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L6R36DM-050-C14

Applications	Medical
Approval Agency	TUV, cULus, EN, FCC, CE
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	5 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	25 W
Region Utilized	International
Size / Dimension [x]	3.94 in
Size / Dimension [x]	100.1 mm
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	33 mm
Size / Dimension [z]	1.3 "
Standard Number	60601-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

L6R36 Series

Part	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Power (Watts)	Applications	Output Connector [diameter]	Output Connector [x]	Output Connector	Current - Output (Max) [Max]	Form	Input Connector	Region Utilized	Voltage - Output	Operating Temperature [Max]	Weight	Weight	No Load Power Consumption	Standard Number	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Input Type	Cord Length	Cord Length	Efficiency	Polarization	No Load Power Consumption [Max]
Tri-Mag, LLC L6R36D-300-C8	90 VAC	264 VAC	cUL FCC UL	36 W	ITE (Commercial)	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	1.2 A	Desktop (Class II)	IEC 320-C8	International	30 VDC	40 °C	240 g	0.529 lb	100 mW	60950-1	1.77 "	97 mm	1.38 in	35 mm	3.82 in	45 mm	Cord	1.5 m	59 in	Level VI
Tri-Mag, LLC L6R36-360	90 VAC	264 VAC	cUL FCC UL	36 W	ITE (Commercial)	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	1 A	Wall Mount (Class II)	NEMA 1-15P	North America	36 V	40 °C			100 mW	60950-1	1.77 "	97 mm	1.52 in	38.6 mm	3.82 in	45 mm	Fixed Blade	1.5 m	59 in	Level VI
Tri-Mag, LLC L6R36DM-090-C8	90 VAC	264 VAC	CE cULus EN FCC TUV	36 W	Medical	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	4 A	Desktop (Class II)	IEC 320-C8	International	9 V	40 °C				60601-1	1.97 "	100.1 mm	1.3 "	33 mm	3.94 in	50 mm	Cord	1.5 m	59 in	Level VI	Positive Center	150 mW
Tri-Mag, LLC L6R36D-120-C8	90 VAC	264 VAC	cUL FCC UL	36 W	ITE (Commercial)	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	3 A	Desktop (Class II)	IEC 320-C8	International	12 V	40 °C	240 g	0.529 lb	100 mW	60950-1	1.77 "	97 mm	1.38 in	35 mm	3.82 in	45 mm	Cord	1.5 m	59 in	Level VI
Tri-Mag, LLC L6R36DM-050-C14	90 VAC	264 VAC	CE cULus EN FCC TUV	25 W	Medical	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	5 A	Desktop (Class I)	IEC 320-C14	International	5 V	40 °C				60601-1	1.97 "	100.1 mm	1.3 "	33 mm	3.94 in	50 mm	Cord	1.5 m	59 in	Level VI	Positive Center	150 mW
Tri-Mag, LLC L6R36-240	90 VAC	264 VAC	cUL FCC UL	36 W	ITE (Commercial)	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	1.5 A	Wall Mount (Class II)	NEMA 1-15P	North America	24 V	40 °C			100 mW	60950-1	1.77 "	97 mm	1.52 in	38.6 mm	3.82 in	45 mm	Fixed Blade	1.5 m	59 in	Level VI
Tri-Mag, LLC L6R36DM-075-C8	90 VAC	264 VAC	CE cULus EN FCC TUV	30 W	Medical	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	4 A	Desktop (Class II)	IEC 320-C8	International	7.5 V	40 °C				60601-1	1.97 "	100.1 mm	1.3 "	33 mm	3.94 in	50 mm	Cord	1.5 m	59 in	Level VI	Positive Center	150 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 20.32

Description

General part information

L6R36 Series

5V 25 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
