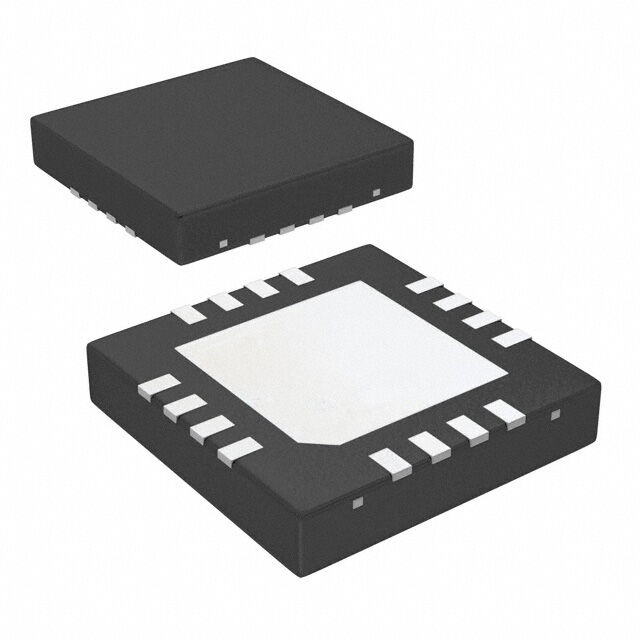

TS30042Q-M000QFNR

Obsolete

Semtech Corporation

IC REG BUCK 2A

Search across all available documentation for this part.

Obsolete

Semtech Corporation

IC REG BUCK 2A

Technical Specifications

Parameters and characteristics for this part

Specification	TS30042Q-M000QFNR

null

Part	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Current - Output	Voltage - Input (Min) [Min]	Frequency - Switching	Supplier Device Package	Output Type	Output Configuration	Function	Voltage - Output (Min/Fixed)	Mounting Type	Package / Case	Output Type	Voltage - Output (Max) [Max]
Semtech Corporation TS30042-M033QFNR	Buck	-40 °C	125 ¯C	1	2 A	4.5 V	1 MHz	16-QFN (3x3)	1.81 mOhm	Positive	Step-Down	3.3 V	Surface Mount	16-VFQFN Exposed Pad
Semtech Corporation TS30042-M000QFNR	Buck	-40 °C	125 ¯C	1	2 A	4.5 V	1 MHz	16-QFN (3x3)		Positive	Step-Down	0.9 V	Surface Mount	16-VFQFN Exposed Pad	Adjustable	39 V
Semtech Corporation TS30042Q-M000QFNR
Semtech Corporation TS30042-M015QFNR	Buck	-40 °C	125 ¯C	1	2 A	4.5 V	1 MHz	16-QFN (3x3)	1.81 mOhm	Positive	Step-Down	1.5 V	Surface Mount	16-VFQFN Exposed Pad
Semtech Corporation TS30042-M018QFNR	Buck	-40 °C	125 ¯C	1	2 A	4.5 V	1 MHz	16-QFN (3x3)	1.81 mOhm	Positive	Step-Down	1.8 V	Surface Mount	16-VFQFN Exposed Pad
Semtech Corporation TS30042-M025QFNR	Buck	-40 °C	125 ¯C	1	2 A	4.5 V	1 MHz	16-QFN (3x3)	1.81 mOhm	Positive	Step-Down	2.5 V	Surface Mount	16-VFQFN Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switching Regulator IC Output

Technical documentation and resources

No documents available
