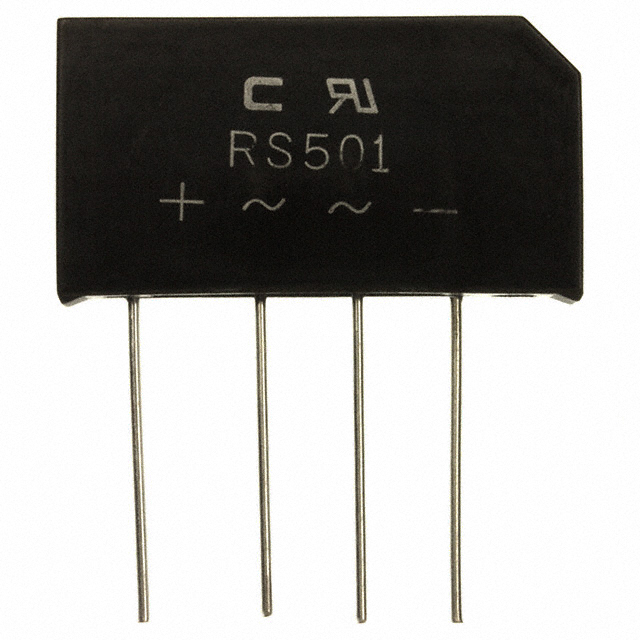

RS501-G

Obsolete

Comchip Technology

BRIDGE RECT 1PHASE 50V 5A RS5

Search across all available documentation for this part.

Obsolete

Comchip Technology

BRIDGE RECT 1PHASE 50V 5A RS5

Technical Specifications

Parameters and characteristics for this part

Specification	RS501-G

Current - Average Rectified (Io)	5 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	4-SIP, RS-5
Supplier Device Package	RS5
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	50 V

Part	Diode Type	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Technology	Supplier Device Package	Current - Average Rectified (Io)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Peak Reverse (Max) [Max]
Comchip Technology RS501-G	Single Phase	Through Hole	1 V	10 µA	Standard	RS5	5 A	125 ¯C	-55 °C	4-SIP RS-5	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 50 V Through Hole RS5
