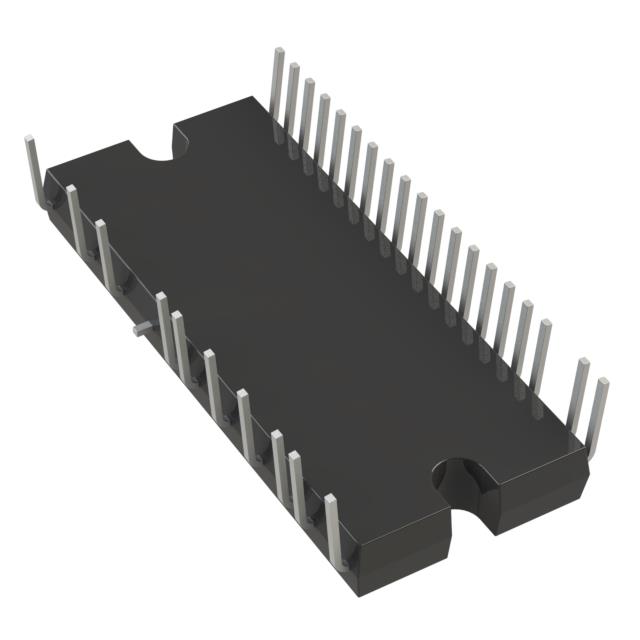

SIM6897M

Active

Sanken Electric USA Inc.

IPM - HIGH VOLTAGE 3 PHASE MOTOR

Search across all available documentation for this part.

Active

Sanken Electric USA Inc.

IPM - HIGH VOLTAGE 3 PHASE MOTOR

Technical Specifications

Parameters and characteristics for this part

Specification	SIM6897M

Applications	Fan Motor Driver
Current - Output	10 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - AC, DC	Brushless DC (BLDC)
Motor Type - Stepper	Multiphase
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Configuration	Half Bridge (3)
Package / Case	16.7 mm
Package / Case	29 Leads, 0.657 in
Package / Case	40-DIP
Supplier Device Package	40-DIP LF2971
Technology	IGBT
Voltage - Load	400 V
Voltage - Supply [Max]	16.5 V
Voltage - Supply [Min]	13.5 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case	Package / Case	Motor Type - AC, DC	Function	Interface	Current - Output	Motor Type - Stepper	Output Configuration	Voltage - Load	Mounting Type	Technology	Applications	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]
Sanken Electric USA Inc. SIM6897M	13.5 V	16.5 V	16.7 mm	0.657 in 29 Leads	40-DIP	Brushless DC (BLDC)	Driver - Fully Integrated Control and Power Stage	Parallel	10 A	Multiphase	Half Bridge (3)	400 V	Through Hole	IGBT	Fan Motor Driver	40-DIP LF2971	100 °C	-30 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Multiphase Motor Driver IGBT Parallel 40-DIP LF2971
