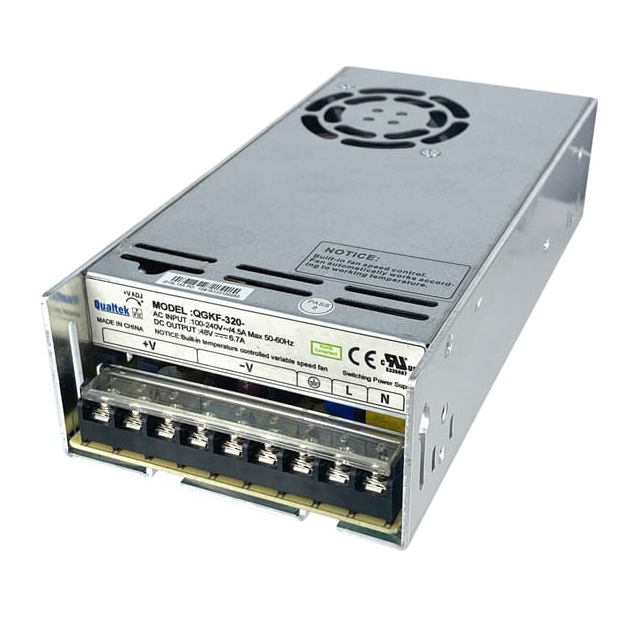

QGKF-320-12

Active

Qualtek

AC/DC CONVERTER 12V 320W

Search across all available documentation for this part.

Active

Qualtek

AC/DC CONVERTER 12V 320W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 1	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Power (Watts)	Current - Output 1	Efficiency	Voltage - Isolation	Mounting Type	Type	Applications	Features
Qualtek QGKF-320-5	5 V	1	-25 °C	70 °C	50 mm	7.83 in	3.9 in	1.97 "	99 mm	199 mm	CB CE cURus	320 W	55 A	79 %	3000 V	Chassis Mount	Enclosed	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input
Qualtek QGKF-320-12	12 V	1	-25 °C	70 °C	50 mm	7.83 in	3.9 in	1.97 "	99 mm	199 mm	CB CE cURus	320 W	25 A	84.5 %	3000 V	Chassis Mount	Enclosed	ITE (Commercial)
Qualtek QGKF-320-24	24 V	1	-25 °C	70 °C	50 mm	7.83 in	3.9 in	1.97 "	99 mm	199 mm	CB CE cURus	320 W	13 A	87 %	3000 V	Chassis Mount	Enclosed	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 79.40

General part information

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
