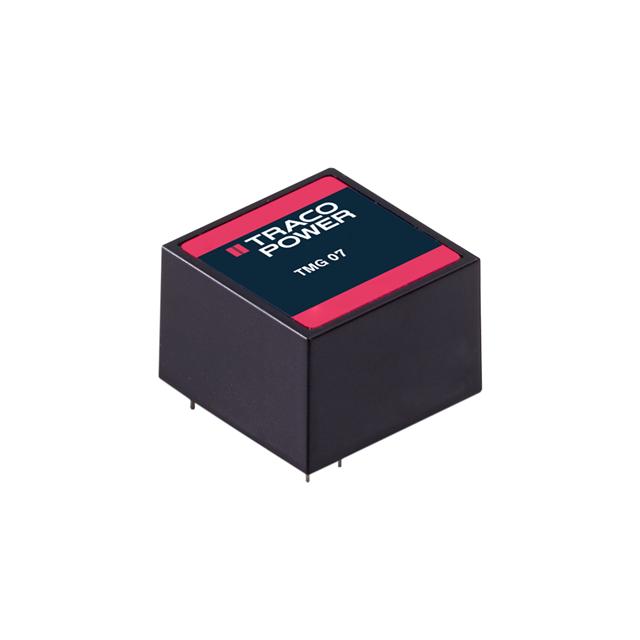

TMG 07112

Active

Traco Power

AC/DC CONVERTER 12V 7W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 12V 7W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Number of Outputs	Power (Watts)	Features	Type	Voltage - Output 1	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Efficiency	Mounting Type	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
Traco Power TMG 07112	4-DIP Module	1	7 W	Universal Input	Enclosed	12 V	CE cURus	264 VAC 370 VDC	90 VAC 120 VDC	583 mA	80 %	Through Hole	ITE (Commercial)	0.74 in	18.7 mm	27.4 mm	1.08 "	1.08 in	27.4 mm
Traco Power TMG 07115	4-DIP Module	1	7 W	Universal Input	Enclosed	15 V	CE cURus	264 VAC 370 VDC	90 VAC 120 VDC	466 mA	80 %	Through Hole	ITE (Commercial)	0.74 in	18.7 mm	27.4 mm	1.08 "	1.08 in	27.4 mm
Traco Power TMG 07124	4-DIP Module	1	7 W	Universal Input	Enclosed	24 V	CE cURus	264 VAC 370 VDC	90 VAC 120 VDC	292 mA	80 %	Through Hole	ITE (Commercial)	0.74 in	18.7 mm	27.4 mm	1.08 "	1.08 in	27.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 583mA 90 ~ 264 VAC, 120 ~ 370 VDC Input
