MPQ2735GG-AEC1-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC SWITCH SPDT X 2 450MOHM 10QFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC SWITCH SPDT X 2 450MOHM 10QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MPQ2735GG-AEC1-Z

-3db Bandwidth	50 MHz
Channel Capacitance (CS(off), CD(off)) [custom]	6 pF
Channel Capacitance (CS(off), CD(off)) [custom]	6 pF
Crosstalk	-70 dB
Grade	Automotive
Mounting Type	Surface Mount
Number of Circuits	2
On-State Resistance (Max) [Max]	450 mOhm

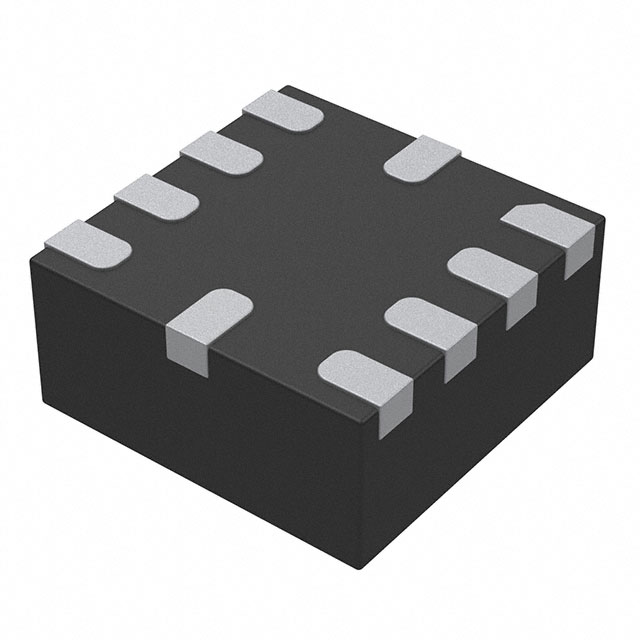

Package / Case	10-TFQFN
Qualification	AEC-Q100
Supplier Device Package	10-QFN (2x2)
Switch Circuit	SPDT
Switch Time (Ton, Toff) (Max)	24 ns, 20 ns
Voltage - Supply, Single (V+) [Max]	5.5 V
Voltage - Supply, Single (V+) [Min]	1.65 V

Part	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Grade	Mounting Type	Switch Time (Ton, Toff) (Max)	-3db Bandwidth	Package / Case	Qualification	On-State Resistance (Max) [Max]	Supplier Device Package	Crosstalk	Switch Circuit	Number of Circuits
MONOLITHIC POWER SYSTEMS (MPS) MPQ2735GG-AEC1-Z	6 pF	6 pF	1.65 V	5.5 V	Automotive	Surface Mount	20 ns 24 ns	50 MHz	10-TFQFN	AEC-Q100	450 mOhm	10-QFN (2x2)	-70 dB	SPDT	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.54

General part information

2 Circuit IC Switch 450mOhm 10-QFN (2x2)

Technical documentation and resources

No documents available
