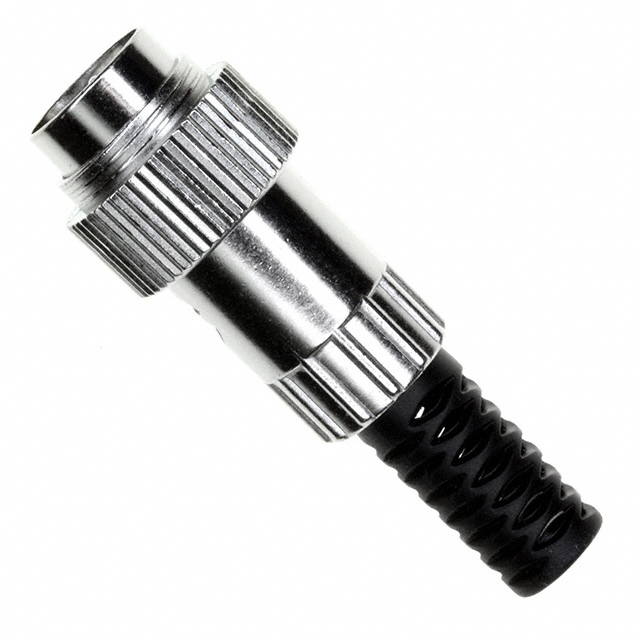

SD-30LP
ActiveCUI Devices
CONN PLUG MALE DIN 3P SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SD-30LP |
|---|---|
| Cable Opening [diameter] | 8 mm |
| Cable Opening [diameter] | 0.315 in |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Brass |
| Current Rating (Amps) | 2 A |
| Features | Strain Relief, Coupling Nut |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | DIN |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 5.36 | |
| 10 | $ 4.87 | |||
| 25 | $ 4.61 | |||
| 50 | $ 4.50 | |||
| 100 | $ 4.29 | |||
| 250 | $ 3.75 | |||
| 500 | $ 3.64 | |||
| 1000 | $ 3.11 | |||
| 3000 | $ 2.89 | |||
Description
General part information
SD-30 Series
3 Position Circular Connector Plug, Male Pins Solder
