Technical Specifications
Parameters and characteristics for this part
| Specification | 0283080.MXJ-B |
|---|---|
| Color | Black |
| Current Rating (Amps) | 80 A |
| Fuse Type | Automotive |
| Mounting Type | Bolt Mount |
| Package / Case | Auto Link |
| Response Time | Slow Blow |
| Size / Dimension [x] | 22.81 mm, 0.898 in |
| Size / Dimension [y] | 0.638 in, 16.2 mm |
| Size / Dimension [z] | 0.866 in, 22 mm |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0283080.MXJ-B Series

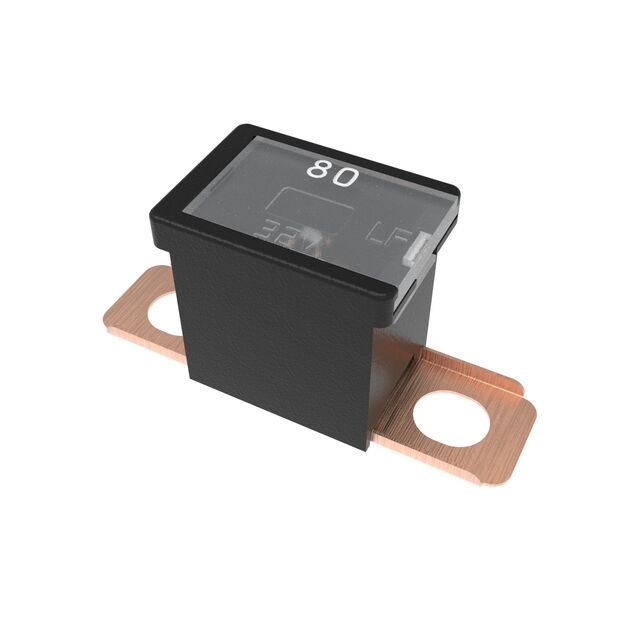

This 80 A 283B Series Auto Link PAL fuse typically protects alternators and starters in Japanese automobiles. The bolt down fuse is rated at 32 V dc.
