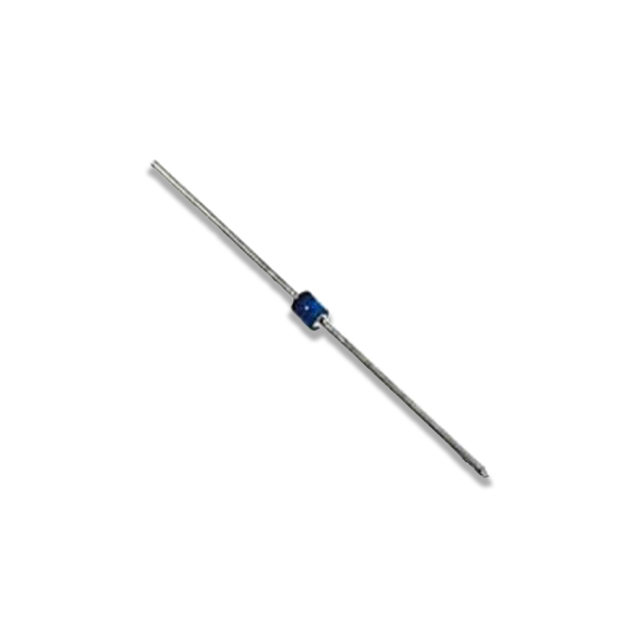

1N5811

Unknown

Semtech Corporation

DIODE SWITCHING 150V 6A 2-PIN CASE G-112

Search across all available documentation for this part.

Unknown

Semtech Corporation

DIODE SWITCHING 150V 6A 2-PIN CASE G-112

Technical Specifications

Parameters and characteristics for this part

Specification	1N5811

Capacitance @ Vr, F	60 pF
Current - Average Rectified (Io)	6 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Through Hole
Package / Case	Axial
Reverse Recovery Time (trr)	30 ns
Speed	200 mA, 500 ns
Supplier Device Package	Axial
Technology	Standard

Part	Current - Reverse Leakage @ Vr	Qualification	Grade	Reverse Recovery Time (trr)	Mounting Type	Speed	Capacitance @ Vr, F	Current - Average Rectified (Io)	Technology	Package / Case	Supplier Device Package
Semtech Corporation JANTXV1N5811US	5 µA	MIL-PRF-19500/477	Military	30 ns	Surface Mount	200 mA 500 ns	60 pF	6 A	Standard	SQ-MELF
Semtech Corporation JANTX1N5811US	5 µA	MIL-PRF-19500/477	Military	30 ns	Surface Mount	200 mA 500 ns	60 pF	6 A	Standard	SQ-MELF
Semtech Corporation 1N5811	5 µA			30 ns	Through Hole	200 mA 500 ns	60 pF	6 A	Standard	Axial	Axial
Semtech Corporation JANTXV1N5811	5 µA	MIL-PRF-19500/477	Military	30 ns	Through Hole	200 mA 500 ns	60 pF	6 A	Standard	Axial	Axial
Semtech Corporation JAN1N5811US

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 150 V 6A Through Hole Axial

Technical documentation and resources

No documents available
