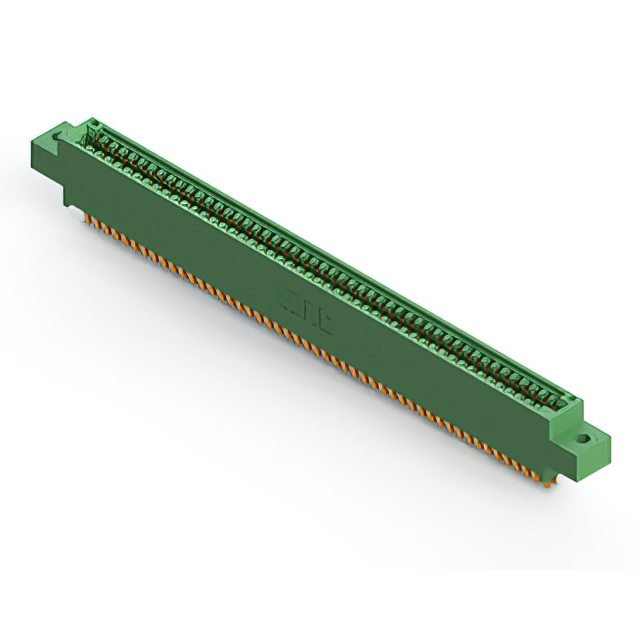

845-098-560-802

Active

EDAC Inc.

CONN EDGE DUAL FMALE 98POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-098-560-802

Active

EDAC Inc.

CONN EDGE DUAL FMALE 98POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-098-560-802

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	98
Number of Positions/Bay/Row [custom]	49
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

845-098 Series

...

Part	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Color	Contact Type	Termination	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Gender	Material - Insulation	Number of Rows	Mounting Type	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Contact Finish	Flange Feature	Flange Feature	Features
EDAC Inc. 845-098-542-803	2	10 Áin	0.25 Ám	98	Green	Cantilever	Wire Wrap	2.54 mm	0.1 in	125 °C	-40 °C	Copper Alloy	49	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Female	Diallyl Phthalate (DAP)	2	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold
EDAC Inc. 845-098-560-802	2	10 Áin	0.25 Ám	98	Green	Cantilever	Solder	2.54 mm	0.1 in	125 °C	-40 °C	Copper Alloy	49				Female	Diallyl Phthalate (DAP)	2	Board Edge Straddle Mount	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in	Card Extender
EDAC Inc. 845-098-521-812	2	10 Áin	0.25 Ám	98	Green	Cantilever	Solder	2.54 mm	0.1 in	125 °C	-40 °C	Copper Alloy	49		Side Mount Opening Unthreaded		Female	Diallyl Phthalate (DAP)	2	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in
EDAC Inc. 845-098-559-802	2	10 Áin	0.25 Ám	98	Green	Cantilever	Solder	2.54 mm	0.1 in	125 °C	-40 °C	Copper Alloy	49				Female	Diallyl Phthalate (DAP)	2	Through Hole Right Angle	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in
EDAC Inc. 845-098-558-503	2	10 Áin	0.25 Ám	98	Green	Cantilever	Solder	2.54 mm	0.1 in	125 °C	-40 °C	Copper Alloy	49	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Female	Diallyl Phthalate (DAP)	2	Through Hole Right Angle	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold
EDAC Inc. 845-098-500-812	2	10 Áin	0.25 Ám	98	Green	Cantilever	Solder Eyelet(s)	2.54 mm	0.1 in	125 °C	-40 °C	Copper Alloy	49		Side Mount Opening Unthreaded		Female	Diallyl Phthalate (DAP)	2	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	3.25 mm	0.128 in
EDAC Inc. 845-098-540-503	2	10 Áin	0.25 Ám	98	Green	Cantilever	Wire Wrap	2.54 mm	0.1 in	125 °C	-40 °C	Copper Alloy	49	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Female	Diallyl Phthalate (DAP)	2	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold
EDAC Inc. 845-098-541-808	2	10 Áin	0.25 Ám	98	Green	Cantilever	Wire Wrap	2.54 mm	0.1 in	125 °C	-40 °C	Copper Alloy	49		4-40 Threaded Insert Top Mount Opening		Female	Diallyl Phthalate (DAP)	2	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold
EDAC Inc. 845-098-520-803	2	10 Áin	0.25 Ám	98	Green	Cantilever	Solder	2.54 mm	0.1 in	125 °C	-40 °C	Copper Alloy	49	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Female	Diallyl Phthalate (DAP)	2	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold
EDAC Inc. 845-098-544-203	2	10 Áin	0.25 Ám	98	Green	Cantilever	Wire Wrap	2.54 mm	0.1 in	125 °C	-40 °C	Copper Alloy	49	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Female	Diallyl Phthalate (DAP)	2	Through Hole	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 81.57
Newark	Each	1	$ 115.77
		100	$ 82.77
		250	$ 70.36
		500	$ 59.59
		1000	$ 46.38

Description

General part information

845-098 Series

98 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
