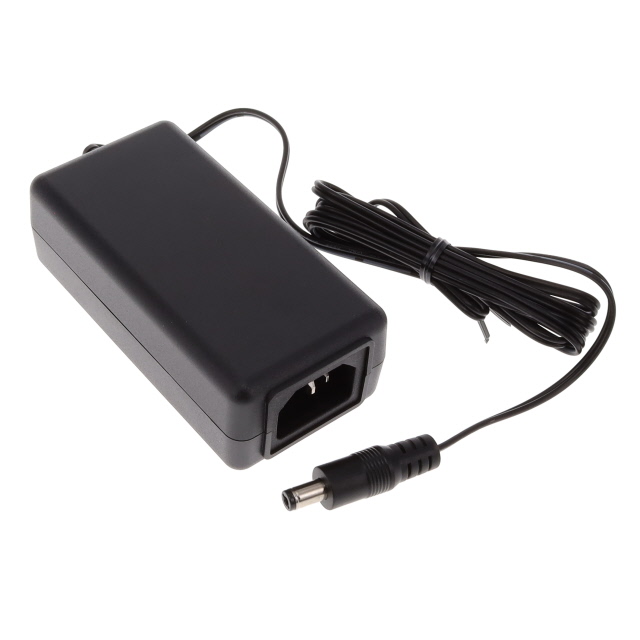

PPL24U-480
ActivePhihong USA
AC/DC DESKTOP ADAPTER 48V 24W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PPL24U-480
ActivePhihong USA
AC/DC DESKTOP ADAPTER 48V 24W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PPL24U-480 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | IEC, cULus |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 10 mm |
| Polarization | Positive Center |
| Power (Watts) | 24 W |
| Region Utilized | International |
| Size / Dimension [x] | 100 mm |
| Size / Dimension [x] | 3.94 in |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [z] | 33 mm |
| Size / Dimension [z] | 1.3 " |
| Standard Number | 62368-1 |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 14.24 | |
| 10 | $ 13.96 | |||
| 25 | $ 13.68 | |||
| 50 | $ 13.01 | |||
| 100 | $ 12.19 | |||
| 250 | $ 11.61 | |||
Description
General part information
PPL24U Series
48V 24 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
