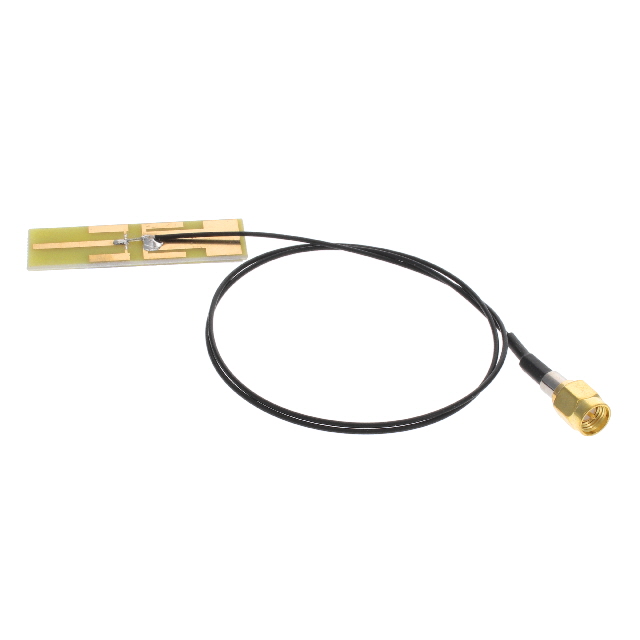

ECHO31/0.5M/SMAM/S/S/17

Active

Siretta Ltd

DUAL BAND 2.4/5GHZ WIFI ANTENNA

Search across all available documentation for this part.

Active

Siretta Ltd

DUAL BAND 2.4/5GHZ WIFI ANTENNA

Technical Specifications

Parameters and characteristics for this part

Specification	ECHO31/0.5M/SMAM/S/S/17

Antenna Type	PCB Trace
Applications	ISM, Bluetooth, WLAN, Wi-Fi, Zigbee™
Frequency (Center/Band)	2.4 GHz, 5 GHz
Frequency Group	4 GHz
Frequency Group [Max]	3 GHz
Frequency Group [Min]	2 GHz
Gain	3 dBi
Height (Max)	0.8 mm
Height (Max) [Max]	0.031 in
Mounting Type	Surface Mount
Number of Bands	2
Power - Max [Max]	50 W
VSWR	2.8

Part	Antenna Type	Power - Max [Max]	Number of Bands	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Frequency (Center/Band)	Applications	Height (Max) [Max]	Height (Max)	Mounting Type	VSWR	Gain
Siretta Ltd ECHO31/0.5M/SMAM/S/S/17	PCB Trace	50 W	2	4 GHz	2 GHz	3 GHz	2.4 GHz 5 GHz	Bluetooth ISM Wi-Fi WLAN Zigbee™	0.031 in	0.8 mm	Surface Mount	2.8	3 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 15.26

General part information

RF ANTENNA Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ PCB Trace SMA Male Surface Mount
