90168-AS

Active

PRECI-DIP SA

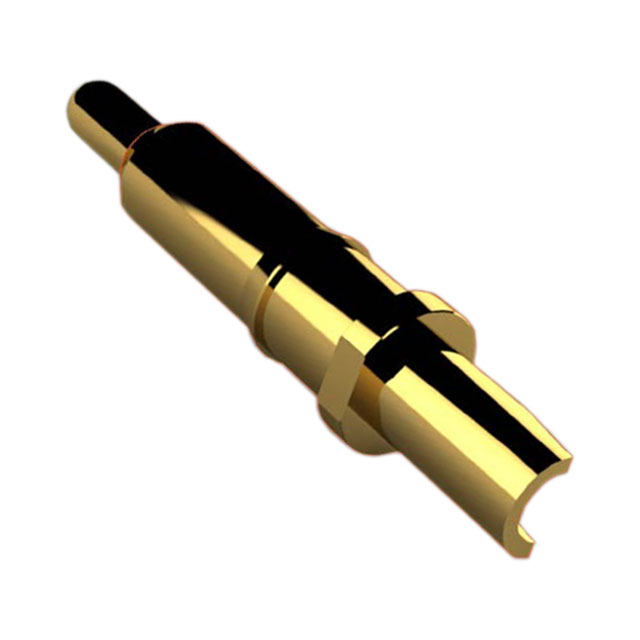

CONTACT SPRING LOADED SLDR CUP

Search across all available documentation for this part.

Active

PRECI-DIP SA

CONTACT SPRING LOADED SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	90168-AS

Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Brass Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	3 A
Mating Cycles	40000
Maximum Working Height [Max]	0.311 in
Maximum Working Height [Max]	7.9 mm
Minimum Working Height	6.3 mm
Minimum Working Height [Min]	0.248 in
Mounting Type	Solder Cup, Through Hole
Operating Force - Initial	35.69 gf
Operating Force - Mid Compression	112.17 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension	Circular
Pad Layout Dimension [diameter]	2.12 mm
Pad Layout Dimension [diameter]	0.083 in
Plunger Size [diameter]	0.038 "
Plunger Size [diameter]	0.96 mm

Part	Maximum Working Height [Max]	Maximum Working Height [Max]	Contact Finish	Mounting Type	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]	Pad Layout Dimension	Contact Type	Current Rating (Amps)	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force - Initial	Plunger Size [diameter]	Plunger Size [diameter]	Operating Force - Mid Compression	Contact Finish Thickness	Contact Finish Thickness	Minimum Working Height [Min]	Minimum Working Height	Contact Material
PRECI-DIP SA 90168-AS	0.311 in	7.9 mm	Gold	Solder Cup Through Hole	2.12 mm	0.083 in	Circular	Sleeve & Plunger (Pogo Pins)	3 A	40000	-55 °C	125 °C	35.69 gf	0.038 "	0.96 mm	112.17 gf	15 µin	0.38 µm	0.248 in	6.3 mm	Brass Alloy
