Technical Specifications
Parameters and characteristics for this part
| Specification | SBCH4R10K |
|---|---|
| Composition | Wirewound |
| Features | Flame Proof, Safety |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 350 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 4 W |
| Resistance | 0.1 Ohms |
| Size / Dimension [x] | 0.315 in, 8 mm |
| Size / Dimension [y] | 0.276 in, 7 mm |
| Size / Dimension [z] | 20 mm, 0.787 in |
| Temperature Coefficient | 400 ppm/°C |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.59 | |
| 10 | $ 1.33 | |||
| 25 | $ 1.29 | |||
| 50 | $ 1.18 | |||
| 100 | $ 0.96 | |||
| 300 | $ 0.86 | |||
| 500 | $ 0.72 | |||
| 1000 | $ 0.60 | |||
| 5000 | $ 0.58 | |||
Description
General part information

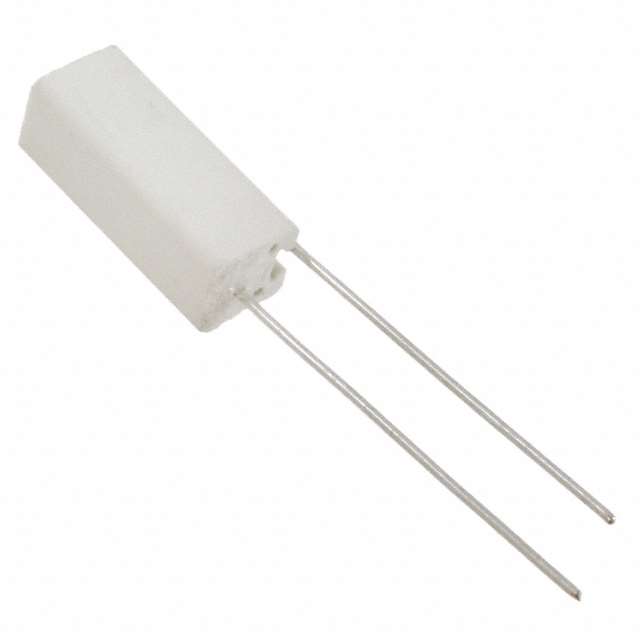

SBCH4 Series
100 mOhms ±10% 4W Through Hole Resistor Axial Flame Proof, Safety Wirewound
