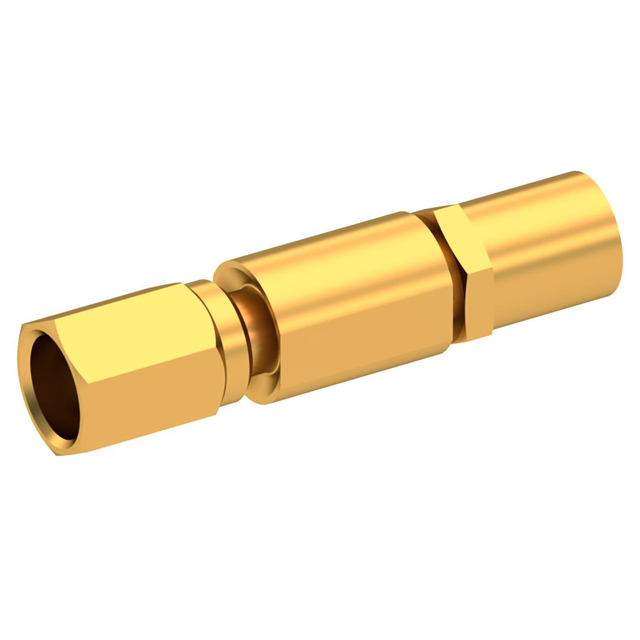

7002-1571-019

Active

Radiall USA, Inc.

SSMC F STR NA CR 2.6/50D

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMC F STR NA CR 2.6/50D

Technical Specifications

Parameters and characteristics for this part

Specification	7002-1571-019

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RD-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMC
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Dielectric Material	Center Contact Plating	Body Material	Frequency - Max [Max]	Number of Ports	Connector Style	Impedance	Housing Color	Voltage Rating	Cable Group	Body Finish	Center Contact Material	Contact Termination	Shield Termination	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Connector Type	Cable Group
Radiall USA, Inc. 7002-1571-019	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	12.4 GHz	1	SSMC	50 Ohms	Gold	250 VDC	RD-316	Gold	Beryllium Copper	Crimp	Crimp	500	-65 ░C	165 °C	Free Hanging (In-Line)	Female Socket Plug
Radiall USA, Inc. 7002-1571-002	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	12.4 GHz	1	SSMC	50 Ohms	Gold	250 VDC	RG-178	Gold	Beryllium Copper	Crimp	Crimp	500	-65 ░C	165 °C	Free Hanging (In-Line)	Female Socket Plug	196

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
