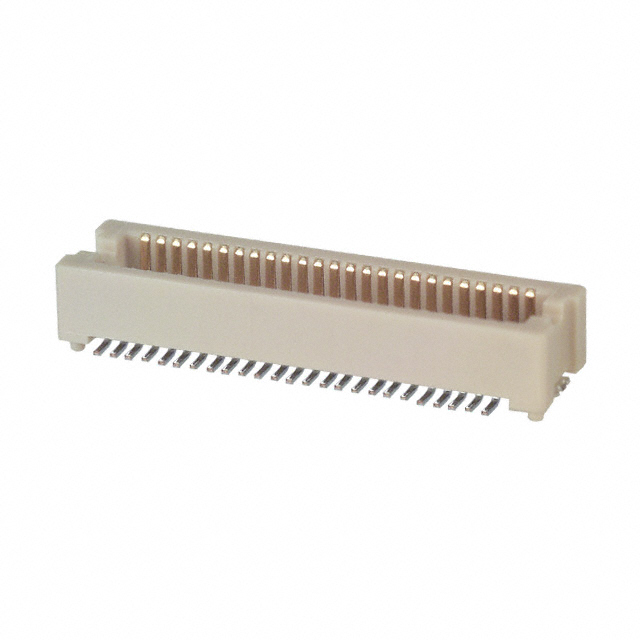

DF15(3.2)-50DP-0.65V(50)

Obsolete

Hirose Electric USA, Inc.

CONN HDR 50POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HDR 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF15(3.2)-50DP-0.65V(50)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board [z]	3.2 mm
Height Above Board [z]	0.126 in
Mated Stacking Heights	4 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.026 in
Pitch [x]	0.65 mm

Part	Contact Finish	Connector Type	Number of Positions	Height Above Board [z]	Height Above Board [z]	Features	Pitch [x]	Pitch [x]	Number of Rows	Mated Stacking Heights	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. DF15(3.2)-50DP-0.65V(50)	Gold	Header Outer Shroud Contacts	50	3.2 mm	0.126 in	Board Guide Solder Retention	0.026 in	0.65 mm	2	4 mm 5 mm	Surface Mount
Hirose Electric USA, Inc. DF15(3.2)-20DP-0.65V(56)	Gold	Header Outer Shroud Contacts	20	3.2 mm	0.126 in	Board Guide Solder Retention	0.026 in	0.65 mm	2	4 mm 5 mm	Surface Mount	4 Áin	0.1 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
