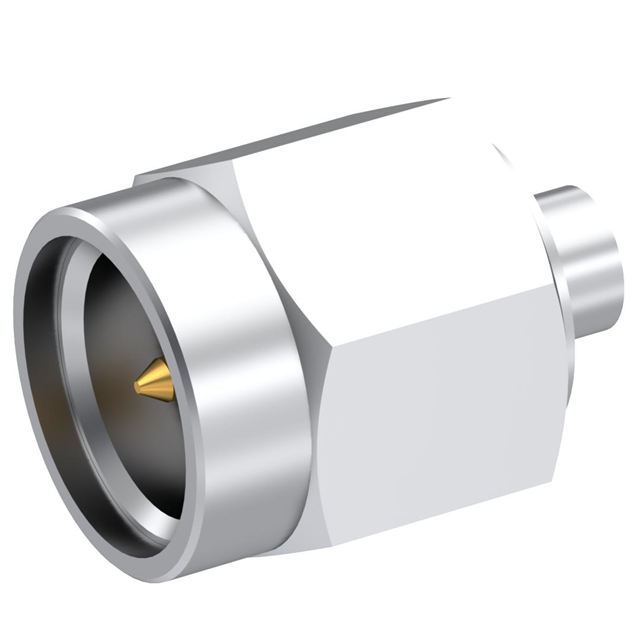

9401-7583-109

Active

Radiall USA, Inc.

SMA M STR NA SD .141

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA M STR NA SD .141

Technical Specifications

Parameters and characteristics for this part

Specification	9401-7583-109

Body Finish	Nickel
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Housing Color	Center Contact Material	Shield Termination	Mating Cycles	Connector Type	Contact Termination	Number of Ports	Frequency - Max [Max]	Mounting Type	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Body Finish	Voltage Rating	Center Contact Plating	Impedance	Dielectric Material
Radiall USA, Inc. 9401-7583-109	Silver	Beryllium Copper	Solder	500	Male Pin Plug	Solder	1	18 GHz	Free Hanging (In-Line)	Stainless Steel	-65 ░C	105 ░C	SMA	Nickel	500 V	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 19.03

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available
