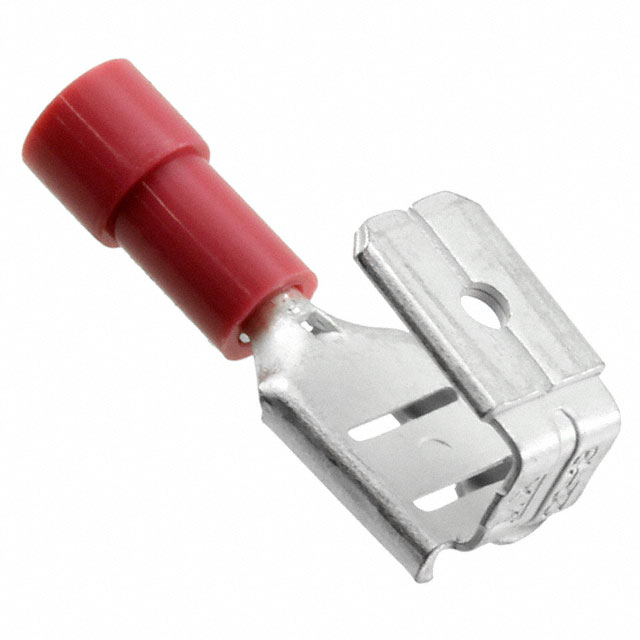

0190110035

Active

Molex

CONN QC RCPT/TAB 18-22AWG 0.250

Search across all available documentation for this part.

Active

Molex

CONN QC RCPT/TAB 18-22AWG 0.250

Technical Specifications

Parameters and characteristics for this part

Specification	0190110035

Color	Red
Contact Finish	Tin
Contact Material	Brass
Gender	Female, Male
Insulation	Non-Mating End Insulated
Insulation Diameter [diameter]	2.79 mm
Insulation Diameter [diameter]	0.11 in
Length - Overall [x]	22.1 mm
Length - Overall [x]	0.87 in
Mounting Type	Free Hanging (In-Line)
Tab Length	7.87 mm
Tab Length	0.31 in
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Stacked
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Mounting Type	Contact Material	Color	Tab Thickness	Tab Thickness	Tab Length	Tab Length	Termination	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Tab Width	Tab Width	Wire Gauge [Max]	Wire Gauge [Min]	Insulation	Gender	Terminal Type
Molex 0190110039	Free Hanging (In-Line)	Brass	Yellow	0.032 in	0.81 mm	7.87 mm	0.31 in	Crimp	5.72 mm	0.225 "	Tin	1.01 in	25.65 mm	6.35 mm	0.25 in	12 AWG	10 AWG	Non-Mating End Insulated	Female Male	Stacked
Molex 0190110037	Free Hanging (In-Line)	Brass	Blue	0.032 in	0.81 mm	7.87 mm	0.31 in	Crimp	3.56 mm	0.14 in	Tin	0.87 in	22.1 mm	6.35 mm	0.25 in			Non-Mating End Insulated	Female Male	Stacked
Molex 0190110035	Free Hanging (In-Line)	Brass	Red	0.032 in	0.81 mm	7.87 mm	0.31 in	Crimp	2.79 mm	0.11 in	Tin	0.87 in	22.1 mm	6.35 mm	0.25 in	22 AWG	17.5 AWG	Non-Mating End Insulated	Female Male	Stacked
Molex 0190110036	Free Hanging (In-Line)	Brass	Red	0.032 in	0.81 mm	7.87 mm	0.31 in	Crimp	2.79 mm	0.11 in	Tin	0.87 in	22.1 mm	6.35 mm	0.25 in	22 AWG	17.5 AWG	Non-Mating End Insulated	Female Male	Stacked
Molex 0190110038	Free Hanging (In-Line)	Brass	Blue	0.032 in	0.81 mm	7.87 mm	0.31 in	Crimp	3.56 mm	0.14 in	Tin	0.87 in	22.1 mm	6.35 mm	0.25 in			Non-Mating End Insulated	Female Male	Stacked

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Female and Male 18-22 AWG Crimp Connector Non-Mating End Insulated
