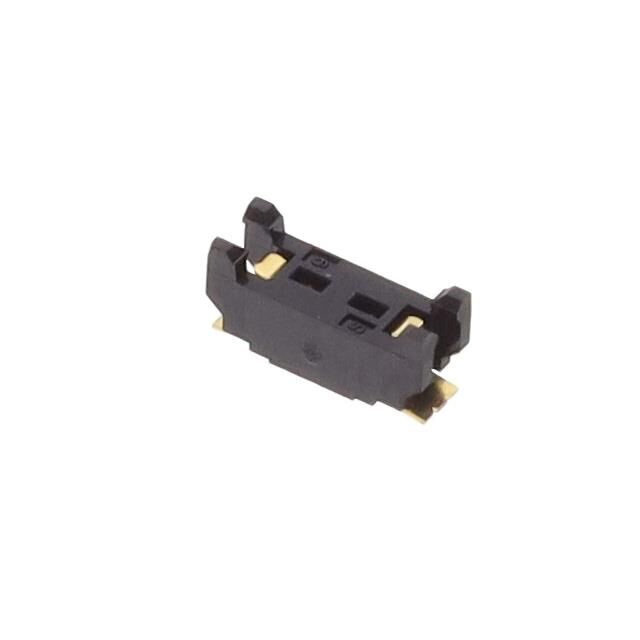

248005602100867+
ActiveKyocera AVX
WIRE TO BOARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
248005602100867+
ActiveKyocera AVX
WIRE TO BOARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 248005602100867+ |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 1 A |
| Fastening Type | Latch Holder |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Material | Plastic |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.01 | |
| 10 | $ 0.71 | |||
| 25 | $ 0.66 | |||
| 50 | $ 0.60 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.42 | |||
| Digi-Reel® | 1 | $ 1.31 | ||
| 10 | $ 0.70 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.38 | |||
| Tape & Reel (TR) | 6000 | $ 0.34 | ||
| 12000 | $ 0.33 | |||
| 30000 | $ 0.32 | |||
Description
General part information
248005 Series
2 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold
