HW1B-M1F10-G

Active

IDEC

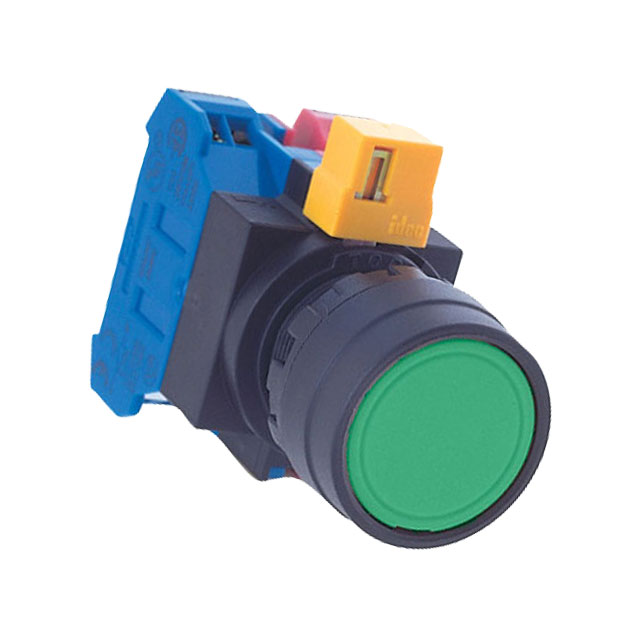

INDUSTRIAL PUSHBUTTON SWITCH, HW SERIES, 22.3 MM, SPST-NO, MOMENTARY, ROUND, GREEN

Search across all available documentation for this part.

Active

IDEC

INDUSTRIAL PUSHBUTTON SWITCH, HW SERIES, 22.3 MM, SPST-NO, MOMENTARY, ROUND, GREEN

Technical Specifications

Parameters and characteristics for this part

Specification	HW1B-M1F10-G

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	8 A, 10 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	110 V
Voltage Rating - DC	24 V

Pushbutton Switches 22mm Momentary Pushbutton Yel

Part	Panel Cutout Dimensions [diameter]	Ingress Protection	Circuit	Termination Style	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Reset Operation	Voltage Rating - DC	Voltage Rating - AC	Current Rating (Amps)	Actuator Type	Type	Actuator Marking	Color - Actuator/Cap	Mechanical Life
IDEC HW1B-V4F01-R	22.3 mm	IP65 - Dust Tight Water Resistant	SPST-NC	Screw Terminal	On-Off	50 °C	-25 °C	Panel Mount Front	Twist	24 V	110 V	8 A 10 A
IDEC HW1B-M1F10-G	22.3 mm	IP65 - Dust Tight Water Resistant	SPST-NO	Screw Terminal	Off-Mom	50 °C	-25 °C	Panel Mount Front		24 V	110 V	8 A 10 A	Button Flush Round	Standard	No Marking	Green	5000000 Cycles
IDEC HW1B-M1P02Y
IDEC HW1B-M1F10-S	22.3 mm	IP65 - Dust Tight Water Resistant	SPST-NO	Screw Terminal	Off-Mom	50 °C	-25 °C	Panel Mount Front		24 V	110 V	8 A 10 A	Button Flush Round	Standard	No Marking	Blue	5000000 Cycles
IDEC HW1B-M1F01-B
