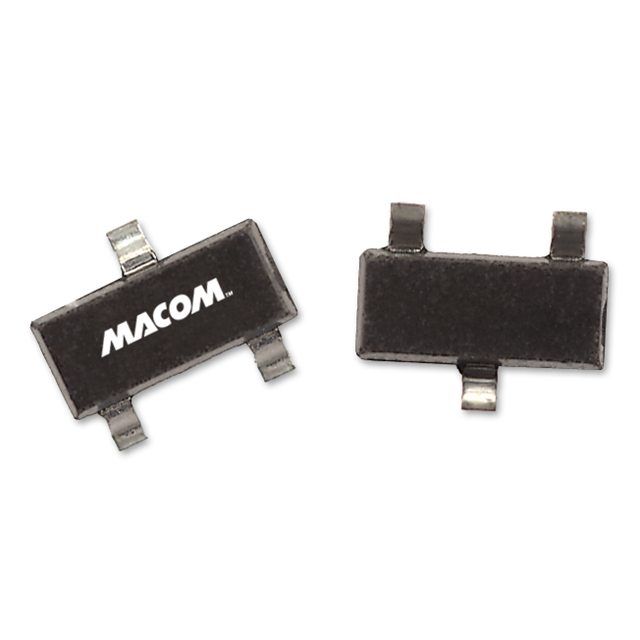

MA4P7447ST-287T
ActiveMACOM Technology Solutions
DIODE,PIN,PLASTIC,LEADFREE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MA4P7447ST-287T
ActiveMACOM Technology Solutions
DIODE,PIN,PLASTIC,LEADFREE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MA4P7447ST-287T |
|---|---|
| Capacitance @ Vr, F | 1.2 pF |
| Current - Max [Max] | 150 mA |
| Operating Temperature | 175 °C |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Power Dissipation (Max) [Max] | 250 mW |
| Resistance @ If, F | 600 mOhm |
| Supplier Device Package | SOT-23 |
| Voltage - Peak Reverse (Max) [Max] | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.38 | |
| 10 | $ 2.14 | |||
| 25 | $ 2.02 | |||
| 100 | $ 1.72 | |||
| 250 | $ 1.62 | |||
| 500 | $ 1.41 | |||
| 1000 | $ 1.17 | |||
| Digi-Reel® | 1 | $ 2.38 | ||
| 10 | $ 2.14 | |||
| 25 | $ 2.02 | |||
| 100 | $ 1.72 | |||
| 250 | $ 1.62 | |||
| 500 | $ 1.41 | |||
| 1000 | $ 1.17 | |||
| Tape & Reel (TR) | 3000 | $ 1.09 | ||
| 6000 | $ 1.05 | |||
Description
General part information
MA4P7447 Series
RF Diode PIN - 1 Pair Series Connection 100V 150 mA 250 mW SOT-23
