LB15WGG01

Active

NKK Switches

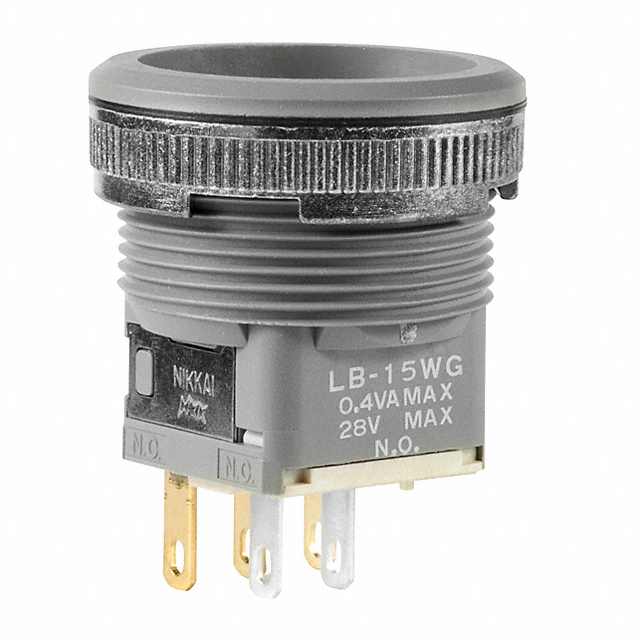

SWITCH PUSH BUTTON ON (ON) SPDT ROUND BUTTON 0.1A 28VAC 28VDC 0.4VA MOMENTARY PANEL MOUNT QUICK CONNECT/SOLDER LUG

Search across all available documentation for this part.

Active

NKK Switches

SWITCH PUSH BUTTON ON (ON) SPDT ROUND BUTTON 0.1A 28VAC 28VDC 0.4VA MOMENTARY PANEL MOUNT QUICK CONNECT/SOLDER LUG

Technical Specifications

Parameters and characteristics for this part

Specification	LB15WGG01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Type	Termination Style	Termination Style	Termination Style	Mechanical Life	Actuator Marking	Voltage Rating - DC	Switch Function	Actuator Type	Circuit	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Electrical Life	Current Rating (Amps)	Mounting Type
NKK Switches LB15WGG01	Standard	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	No Marking	28 V	On-Mom	Plunger for Cap	SPDT	IP65 - Dust Tight Water Resistant	70 °C	-25 °C	28 V	22 mm	100000 Cycles	0.4 VA	Panel Mount Front

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Front
