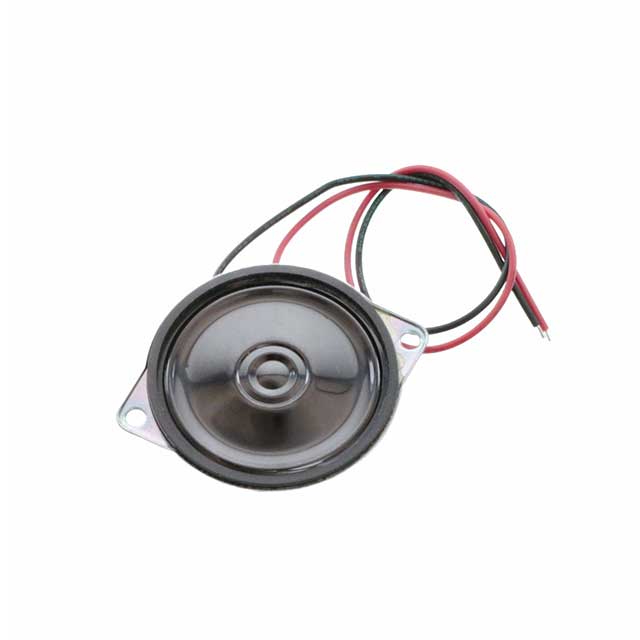

CLS0401MAE-L152

Active

CUI Devices

SPEAKER 4OHM 1W TOP PORT 91DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 4OHM 1W TOP PORT 91DB

Technical Specifications

Parameters and characteristics for this part

Specification	CLS0401MAE-L152

Efficiency - dBA	91 dBA
Efficiency - Testing	1 mW/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	500 Hz
Frequency Range [Max]	7 kHz
Frequency Range [Min]	500 Hz
Height - Seated (Max) [Max] [z]	0.197 in
Height - Seated (Max) [Max] [z]	5 mm
Impedance	4 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	2 W
Power - Rated	1 W
Shape	Round
Size / Dimension [diameter]	1.575 "
Size / Dimension [diameter]	40 mm
Technology	Magnetic
Termination	Wire Leads
Type	Low Profile

Part	Port Location	Power - Max [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Frequency Range [Min]	Frequency Range [Max]	Shape	Frequency - Self Resonant	Power - Rated	Termination	Efficiency - Testing	Type	Material - Cone	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Efficiency - dBA	Material - Magnet	Impedance	Technology	Efficiency - Type
CUI Devices CLS0401MAE-L152	Top	2 W	1.575 "	40 mm	500 Hz	7 kHz	Round	500 Hz	1 W	Wire Leads	1 mW/100mm	Low Profile	Polyester Polyethylene Terephthalate (PET)	0.197 in	5 mm	91 dBA	Nd-Fe-B	4 Ohms	Magnetic	Sound Pressure Level (SPL)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Ohms Low Profile Speaker 1 W 500 Hz ~ 7 kHz Top Round
