ADJH23024

Active

Panasonic Electric Works

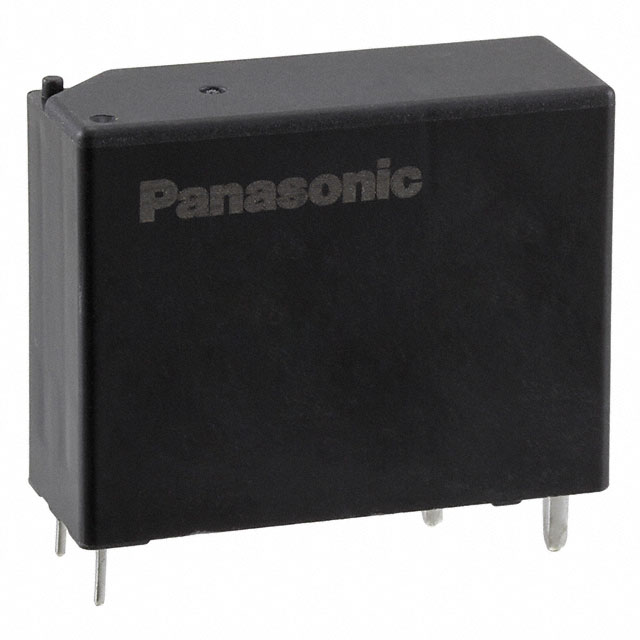

RELAY GEN PURPOSE SPST 50A 24V

Deep-Dive with AI

Search across all available documentation for this part.

ADJH23024

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 50A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ADJH23024

Approval Agency	cURus, VDE
Coil Current	83.3 mA
Coil Insulation	Class F
Coil Resistance	288 Ohms
Coil Type	Latching, Dual Coil
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	50 A
Load - Max Switching [Max]	24000 VA
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Operate Time	20 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	480 VAC
Termination Style	PC Pin

ADJH23 Series

Part	Termination Style	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Mounting Type	Contact Material	Coil Voltage	Seal Rating	Coil Resistance	Contact Rating (Current)	Coil Insulation	Must Operate Voltage	Contact Form	Operate Time	Switching Voltage	Coil Type	Coil Current	Load - Max Switching [Max]	Release Time	Features
Panasonic Electric Works ADJH23005	PC Pin	cURus VDE	85 °C	-40 °C	General Purpose	Through Hole	Silver Tin Oxide (AgSnO)	5 VDC	Sealed - Flux Protection	12.5 Ohms	50 A	Class F	3.75 VDC	SPST-NO (1 Form A)	20 ms	480 VAC	Latching Dual Coil	400 mA	24000 VA	20 ms
Panasonic Electric Works ADJH23024	PC Pin	cURus VDE	85 °C	-40 °C	General Purpose	Through Hole	Silver Tin Oxide (AgSnO)	24 VDC	Sealed - Flux Protection	288 Ohms	50 A	Class F	18 VDC	SPST-NO (1 Form A)	20 ms	480 VAC	Latching Dual Coil	83.3 mA	24000 VA	20 ms
Panasonic Electric Works ADJH23112	PC Pin	cURus VDE	85 °C	-40 °C	General Purpose	Through Hole	Silver Tin Oxide (AgSnO)	12 VDC	Sealed - Flux Protection	72 Ohms	50 A	Class F	9 VDC	SPST-NO (1 Form A)	20 ms	480 VAC	Latching Dual Coil	167 mA	24000 VA	20 ms	Test Button
Panasonic Electric Works ADJH23012	PC Pin	cURus VDE	85 °C	-40 °C	General Purpose	Through Hole	Silver Tin Oxide (AgSnO)	12 VDC	Sealed - Flux Protection	72 Ohms	50 A	Class F	9 VDC	SPST-NO (1 Form A)	20 ms	480 VAC	Latching Dual Coil	167 mA	24000 VA	20 ms
Panasonic Electric Works ADJH23105	PC Pin	cURus VDE	85 °C	-40 °C	General Purpose	Through Hole	Silver Tin Oxide (AgSnO)	5 VDC	Sealed - Flux Protection	12.5 Ohms	50 A	Class F	3.75 VDC	SPST-NO (1 Form A)	20 ms	480 VAC	Latching Dual Coil	400 mA	24000 VA	20 ms	Test Button
Panasonic Electric Works ADJH23124	PC Pin	cURus VDE	85 °C	-40 °C	General Purpose	Through Hole	Silver Tin Oxide (AgSnO)	24 VDC	Sealed - Flux Protection	288 Ohms	50 A	Class F	18 VDC	SPST-NO (1 Form A)	20 ms	480 VAC	Latching Dual Coil	83.3 mA	24000 VA	20 ms	Test Button

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 12.37
		10	$ 10.81
		25	$ 10.24
		40	$ 9.96
		80	$ 9.57
		230	$ 8.99
		440	$ 8.65
		945	$ 8.27

Description

General part information

ADJH23 Series

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
