Technical Specifications
Parameters and characteristics for this part
| Specification | 0313025.HXP |
|---|---|
| Approval Agency | UL |
| Breaking Capacity @ Rated Voltage | 300 A |
| Current Rating (Amps) | 25 A |
| DC Cold Resistance | 1.7 mOhms |
| Melting I˛t | 16500 |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 3AB, 3AG |
| Package / Case [x] | 1/4 |
| Package / Case [y] | 1-1/4 |
| Response Time | Slow Blow |
| Size / Dimension [diameter] | 0.25 in |
| Size / Dimension [diameter] | 6.35 mm |
| Size / Dimension [x] | 31.75 mm |
| Size / Dimension [x] | 1.25 " |
| Voltage Rating - AC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.65 | |
| 5 | $ 1.57 | |||
| 10 | $ 1.49 | |||
| 50 | $ 1.21 | |||
| 100 | $ 1.02 | |||
| 300 | $ 1.00 | |||
| 500 | $ 0.84 | |||
| 1000 | $ 0.75 | |||
| 5000 | $ 0.72 | |||
Description
General part information
0313.062 Series

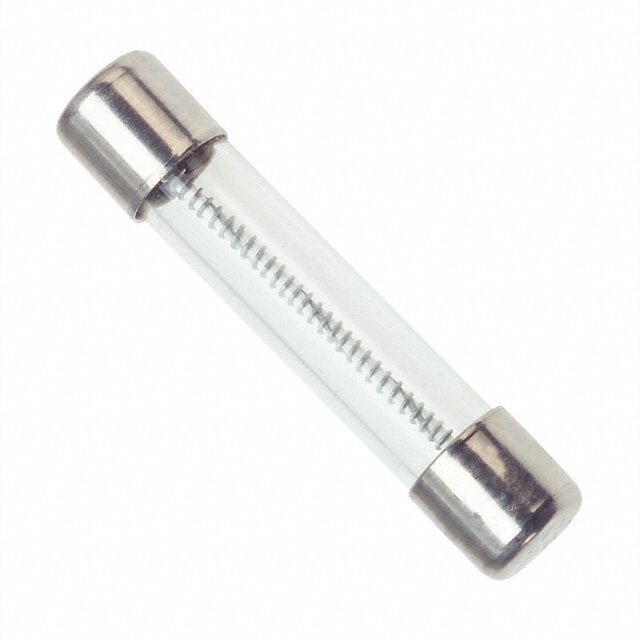

The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
