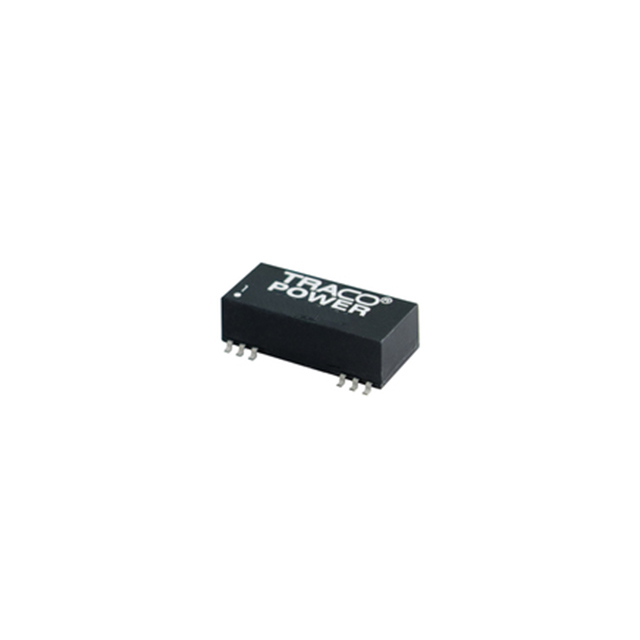

TES 3-4823

Traco Power

DC DC CONVERTER +/-15V 3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TES 3-4823

Traco Power

DC DC CONVERTER +/-15V 3W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TES 3-4823

Applications	ITE (Commercial)
Current - Output (Max)	100 mA
Current - Output (Max)	100 mA
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-SMD Module, 12 Leads
Power (Watts)	3 W
Size / Dimension [x]	1.27 in
Size / Dimension [x]	32.2 mm
Size / Dimension [y]	0.58 "
Size / Dimension [y]	14.8 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

TES 3 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Number of Outputs	Applications	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Features	Current - Output (Max) [Max]	Type	Package / Case	Mounting Type	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Power (Watts)	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Traco Power TES 3-2410WI	-40 °C	71 °C	3.3 V	1	ITE (Commercial)	36 V	9 V	Remote On/Off SCP	750 mA	Isolated Module	24-SMD Module 12 Leads	Surface Mount	75 %	0.4 "	0.58 "	10.2 mm	1.27 in	32.2 mm	14.8 mm	1.5 kV
Traco Power TES 3-4811	-40 °C	85 °C	5 V	1	ITE (Commercial)	75 V	36 V	SCP	600 mA	Isolated Module	24-SMD Module 12 Leads	Surface Mount	80 %	0.4 "	0.58 "	10.2 mm	1.27 in	32.2 mm	14.8 mm	1.5 kV	3 W
Traco Power TES 3-4823	-40 °C	85 °C	15 V	2	ITE (Commercial)	75 V	36 V	SCP		Isolated Module	24-SMD Module 12 Leads	Surface Mount		0.4 "	0.58 "	10.2 mm	1.27 in	32.2 mm	14.8 mm	1.5 kV	3 W	-15 V	100 mA	100 mA
Traco Power TES 3-2421WI	-40 °C	71 °C	5 V	2	ITE (Commercial)	36 V	9 V	Remote On/Off SCP		Isolated Module	24-SMD Module 12 Leads	Surface Mount	78 %	0.4 "	0.58 "	10.2 mm	1.27 in	32.2 mm	14.8 mm	1.5 kV	3 W	-5 V		300 mA
Traco Power TES 3-4811WI	-40 °C	71 °C	5 V	1	ITE (Commercial)	75 V	18 V	Remote On/Off SCP	600 mA	Isolated Module	24-SMD Module 12 Leads	Surface Mount	80 %	0.4 "	0.58 "	10.2 mm	1.27 in	32.2 mm	14.8 mm	1.5 kV	3 W
Traco Power TES 3-4812	-40 °C	85 °C	12 V	1	ITE (Commercial)	75 V	36 V	SCP	250 mA	Isolated Module	24-SMD Module 12 Leads	Surface Mount	83 %	0.4 "	0.58 "	10.2 mm	1.27 in	32.2 mm	14.8 mm	1.5 kV	3 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 31.71

Description

General part information

TES 3 Series

Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 36V - 75V Input

Documents

Technical documentation and resources
