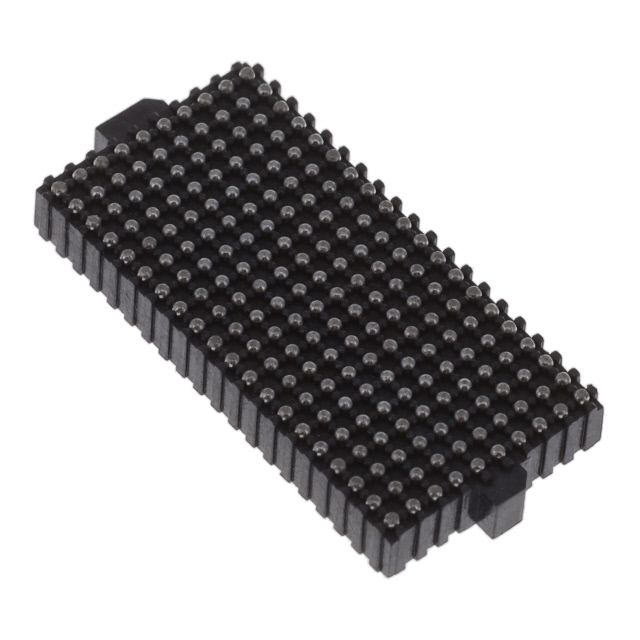

YFS-20-03-H-10-SB-K - YFS-20-03-H-10-SB-K

YFS-20-03-H-10-SB-K

Active
Samtec Inc.

CONN RECPT 200POS 1.27MM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetYFS Datasheet+1
YFS-20-03-H-10-SB-K - YFS-20-03-H-10-SB-K

YFS-20-03-H-10-SB-K

Active
Samtec Inc.

CONN RECPT 200POS 1.27MM SMD

Deep-Dive with AI

DocumentsDatasheetYFS Datasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationYFS-20-03-H-10-SB-K
Connector TypeFemale Sockets, Array
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
FeaturesPick and Place
Height Above Board [z]3.4 mm
Height Above Board [z]0.134 in
Mated Stacking Heights7 mm, 5 mm, 9 mm, 12 mm, 19 mm, 25 mm
Mounting TypeSurface Mount
Number of Rows10
Pitch [x]0.05 in
Pitch [x]1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 87.77
10$ 68.23
25$ 62.04
40$ 59.17
80$ 55.27

Description

General part information

YFS-20 Series

200 Position Connector Array, Female Sockets Surface Mount Gold
