BC118-DISKIT001

Active

Semtech Corporation

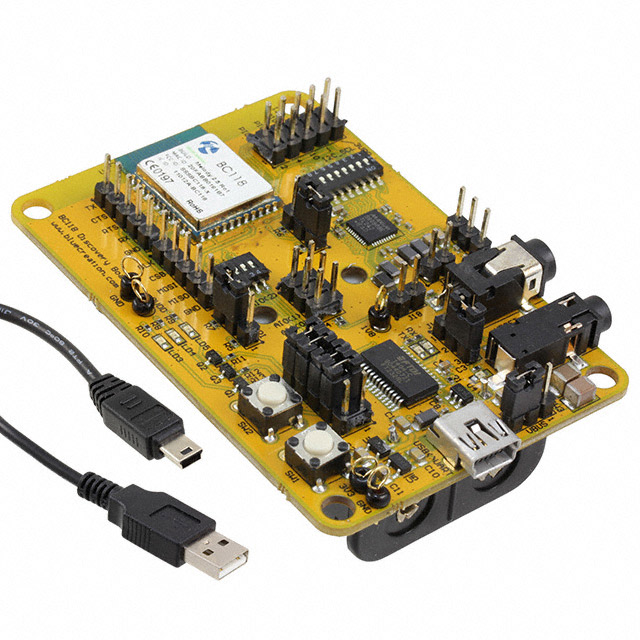

EVAL KIT BLUETOOTH BC118

Search across all available documentation for this part.

Active

Semtech Corporation

EVAL KIT BLUETOOTH BC118

Technical Specifications

Parameters and characteristics for this part

Specification	BC118-DISKIT001

For Use With/Related Products	BC118
Frequency	2.4 GHz
Supplied Contents	Board(s)
Type	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)

Part	Supplied Contents	Type	For Use With/Related Products	Frequency	Current - Transmitting	Package / Case	Sensitivity	Frequency [Min]	Frequency [Max]	Current - Receiving	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]	Modulation	Power - Output	RF Family/Standard	Serial Interfaces	Mounting Type	Utilized IC / Part	Memory Size
Semtech Corporation BC118-DISKIT001	Board(s)	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)	BC118	2.4 GHz
Semtech Corporation BC118_1103396					16 mA	Module	-92.5 dBm	2.4 GHz	2.48 GHz	16 mA	Bluetooth v4.1	85 °C	-40 °C	Integrated Trace	270 kbps	3.6 V	1.8 V	8PSK GFSK QPSK	7.5 dBm	Bluetooth	I2C UART USB	Surface Mount
Semtech Corporation BC118_1103394				2.4 GHz	16 mA	Module	-92.5 dBm			16 mA	Bluetooth v4.0	85 °C	-40 °C	Integrated Chip	270 kbps	4.7 V	3.3 V	DPSK DQPSK GFSK	7.5 dBm	Bluetooth	I2C UART USB	Surface Mount	EM3587	512 MB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 188.43

General part information

BC - AirPrime® BC118 Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) 2.4GHz Evaluation Board
