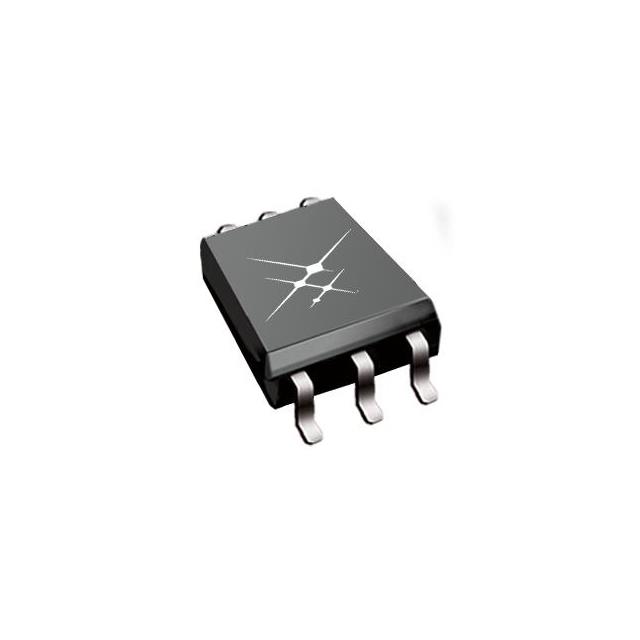

SI8261BAD-C-IS

Active

Skyworks Solutions Inc.

DGTL ISO 5KV 1CH GT DVR 6SDIP GW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SI8261BAD-C-IS

Active

Skyworks Solutions Inc.

DGTL ISO 5KV 1CH GT DVR 6SDIP GW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI8261BAD-C-IS

Approval Agency	CQC, CSA, VDE, UR
Common Mode Transient Immunity (Min) [Min]	35 kV/µs
Current - DC Forward (If) (Max) [Max]	30 mA
Current - Output High, Low	500 mA, 1.2 A
Current - Peak Output	4 A
Grade	Automotive
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-SOIC
Package / Case [x]	0.295 in
Package / Case [y]	7.5 mm
Propagation Delay tpLH / tpHL (Max) [custom]	50 ns
Propagation Delay tpLH / tpHL (Max) [custom]	60 ns
Pulse Width Distortion (Max) [Max] [x]	28 ns
Qualification	AEC-Q100
Supplier Device Package	6-SDIP Gull Wing
Technology	Capacitive Coupling
Voltage - Forward (Vf) (Typ)	2.8 V

SI8261 Series

Part	Voltage - Forward (Vf) (Typ)	Current - Output High, Low	Technology	Grade	Current - Peak Output	Pulse Width Distortion (Max) [Max] [x]	Voltage - Isolation	Number of Channels	Approval Agency	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Common Mode Transient Immunity (Min) [Min]	Supplier Device Package	Mounting Type	Qualification	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case	Package / Case [x]	Package / Case [y]	Pulse Width Distortion (Max)
Skyworks Solutions Inc. SI8261BAC-C-IP	2.8 V	1.2 A 500 mA	Capacitive Coupling	Automotive	4 A	28 ns	3750 Vrms	1	CQC CSA UR VDE	30 mA	125 °C	-40 °C	35 kV/µs	8-DIP Gull Wing	Surface Mount	AEC-Q100	50 ns	60 ns
Skyworks Solutions Inc. SI8261ACC-C-IP	2.8 V		Capacitive Coupling	Automotive	600 mA	28 ns	3750 Vrms	1	CQC CSA UR VDE	30 mA	125 °C	-40 °C	35 kV/µs	8-DIP Gull Wing	Surface Mount	AEC-Q100	50 ns	60 ns	30 V	13.5 V	400 mA	600 mA
Skyworks Solutions Inc. SI8261BCD-C-IS	2.8 V	1.2 A 500 mA	Capacitive Coupling	Automotive	4 A	28 ns		1	CQC CSA UR VDE	30 mA	125 °C	-40 °C	35 kV/µs	6-SDIP Gull Wing	Surface Mount	AEC-Q100	50 ns	60 ns	30 V	13.5 V			6-SOIC	0.295 in	7.5 mm
Skyworks Solutions Inc. SI8261BAD-C-IS	2.8 V	1.2 A 500 mA	Capacitive Coupling	Automotive	4 A	28 ns		1	CQC CSA UR VDE	30 mA	125 °C	-40 °C	35 kV/µs	6-SDIP Gull Wing	Surface Mount	AEC-Q100	50 ns	60 ns					6-SOIC	0.295 in	7.5 mm
Skyworks Solutions Inc. SI8261AAC-C-IS	2.8 V		Capacitive Coupling	Automotive	600 mA	28 ns	3750 Vrms	1	CQC CSA UR VDE	30 mA	125 °C	-40 °C	35 kV/µs	8-SOIC	Surface Mount	AEC-Q100	50 ns	60 ns			400 mA	600 mA	8-SOIC	0.154 in	3.9 mm
Skyworks Solutions Inc. SI8261BBA-C-IS	2.8 V	1.2 A 500 mA	Capacitive Coupling	Automotive	4 A			1	CQC CSA UR VDE	30 mA	125 °C	-40 °C	35 kV/µs			AEC-Q100	50 ns	60 ns								10 ns
Skyworks Solutions Inc. SI8261ACC-C-IPR	2.8 V		Capacitive Coupling	Automotive	600 mA	28 ns	3750 Vrms	1	CQC CSA UR VDE	30 mA	125 °C	-40 °C	35 kV/µs	8-DIP Gull Wing	Surface Mount	AEC-Q100	50 ns	60 ns	30 V	13.5 V	400 mA	600 mA
Skyworks Solutions Inc. SI8261ABC-C-IS	2.8 V		Capacitive Coupling	Automotive	600 mA	28 ns	3750 Vrms	1	CQC CSA UR VDE	30 mA	125 °C	-40 °C	35 kV/µs	8-SOIC	Surface Mount	AEC-Q100	50 ns	60 ns			400 mA	600 mA	8-SOIC	0.154 in	3.9 mm
Skyworks Solutions Inc. SI8261AAD-C-IS	2.8 V		Capacitive Coupling	Automotive	600 mA	28 ns		1	CQC CSA UR VDE	30 mA	125 °C	-40 °C	35 kV/µs	6-SDIP Gull Wing	Surface Mount	AEC-Q100	50 ns	60 ns			400 mA	600 mA	6-SOIC	0.295 in	7.5 mm
Skyworks Solutions Inc. SI8261BCC-C-ISR	2.8 V	1.2 A 500 mA	Capacitive Coupling	Automotive	4 A	28 ns	3750 Vrms	1	CQC CSA UR VDE	30 mA	125 °C	-40 °C	35 kV/µs	8-SOIC	Surface Mount	AEC-Q100	50 ns	60 ns	30 V	13.5 V			8-SOIC	0.154 in	3.9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.01
		10	$ 2.70
		25	$ 2.56
		100	$ 2.22
		300	$ 2.10
		500	$ 2.00

Description

General part information

SI8261 Series

4A Gate Driver Capacitive Coupling 5000Vrms 1 Channel 6-SDIP Gull Wing
