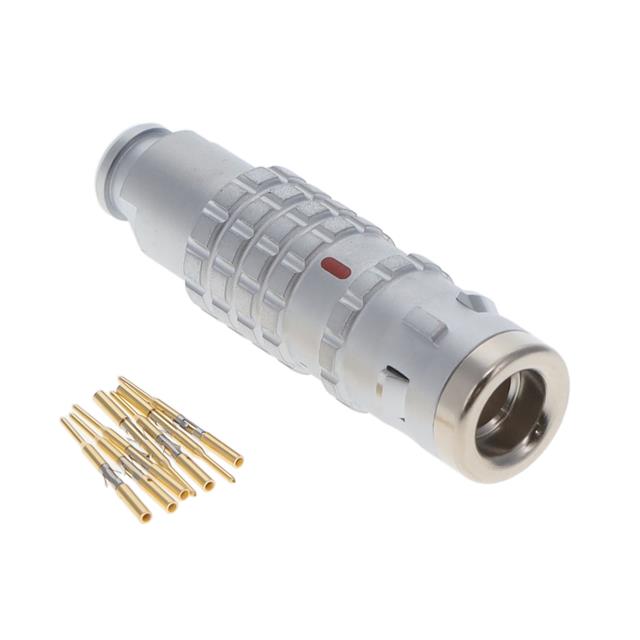

FGG.0K.307.CYCC50Z
ActiveLEMO
CONN PLUG MALE 7POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FGG.0K.307.CYCC50Z
ActiveLEMO
CONN PLUG MALE 7POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FGG.0K.307.CYCC50Z |
|---|---|
| Backshell Material, Plating | Brass, Chrome |
| Cable Opening [Max] [diameter] | 5 mm |
| Cable Opening [Max] [diameter] | 0.197 in |
| Cable Opening [Min] [diameter] | 4.6 mm |
| Cable Opening [Min] [diameter] | 0.181 in |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 2.5 A |
| Fastening Type | Detent Lock, Push-Pull |
| Features | Backshell |
| Ingress Protection | IP66/IP68 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | G |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shell Size - Insert | 307 |
| Shielding | Shielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 48.14 | |
| 10 | $ 44.18 | |||
| 25 | $ 42.48 | |||
| 50 | $ 41.06 | |||
| 100 | $ 38.80 | |||
| 250 | $ 37.67 | |||
Description
General part information
FGG.0K Series
7 Position Circular Connector Plug, Male Pins Crimp
