B2P3-VH
ActiveJST Sales America Inc.

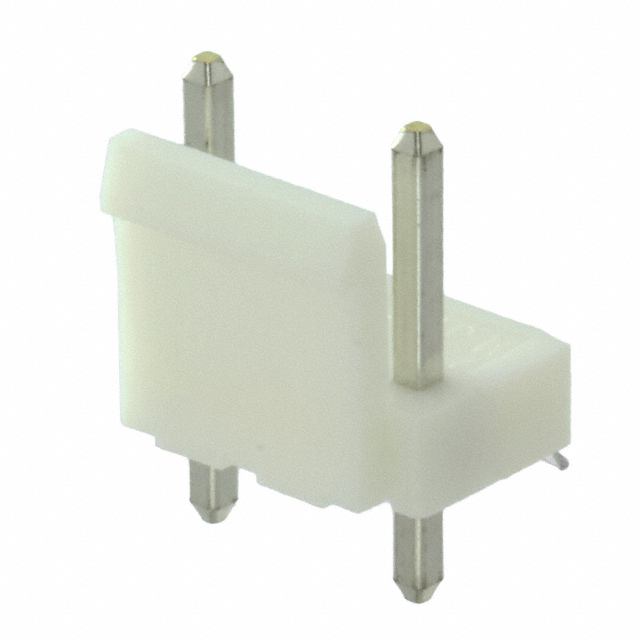

CONN HEADER VERT 2POS 7.92MM
Deep-Dive with AI
Search across all available documentation for this part.
B2P3-VH
ActiveJST Sales America Inc.
CONN HEADER VERT 2POS 7.92MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B2P3-VH |
|---|---|
| Connector Type | Header |
| Contact Length - Mating | 7.7 mm |
| Contact Length - Mating | 0.303 in |
| Contact Length - Post | 0.146 in |
| Contact Length - Post | 3.7 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 7 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height | 0.37 in |
| Insulation Height | 9.4 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mated Stacking Heights | 17.5 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overall Contact Length | 0.575 in |
| Overall Contact Length | 14.6 mm |
| Pitch - Mating | 0.312 in |
| Pitch - Mating | 7.92 mm |
| Shrouding | Shrouded - 1 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.26 | |
| 10 | $ 0.20 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| 5000 | $ 0.10 | |||
| 10000 | $ 0.09 | |||
Description
General part information
B2P3-VH Series
Connector Header Through Hole 2 position 0.312" (7.92mm)
Documents
Technical documentation and resources
