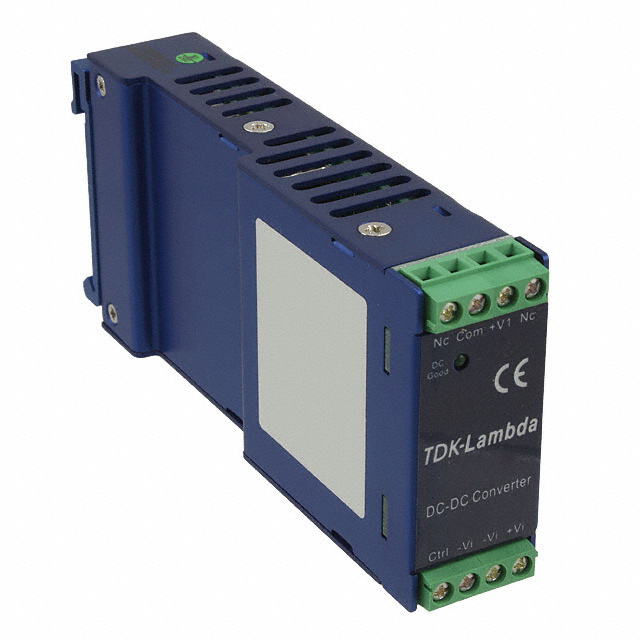

DPX20-24WS3P3
ActiveISOLATED DIN RAIL MOUNT DC/DC CONVERTER, 4:1, 20 W, 1 OUTPUT, 3.3 V, 5.5 A
Deep-Dive with AI
Search across all available documentation for this part.
DPX20-24WS3P3
ActiveISOLATED DIN RAIL MOUNT DC/DC CONVERTER, 4:1, 20 W, 1 OUTPUT, 3.3 V, 5.5 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DPX20-24WS3P3 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 5 A |
| DC Voltage - Input (Max) [Max] | 36 V |
| Efficiency | 83 % |
| Input Type | DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 203 °F |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 20 W |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DPX20 Series
DPX20-24WS3P3 is a DPX20W series single output 20W DIN rail mount DC-DC converter. It includes overload and short circuit, over voltage protection. Application includes communication systems, industry control systems, factory automation, semiconductor equipment. Certified by EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 Perf. Criteria A.
