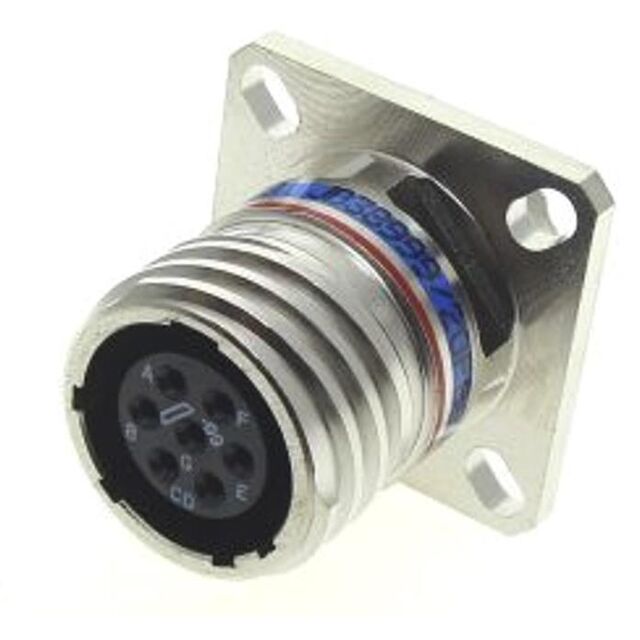

D38999/20JD18JC

Active

Souriau-Sunbank by Eaton

D38999 SER III RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20JD18JC

Active

Souriau-Sunbank by Eaton

D38999 SER III RECEPTACLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20JD18JC

Applications	Aerospace, Aviation, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Grade	Military
Ingress Protection	Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	18
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Orientation	C
Primary Material	Composite
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Composite
Shell Size - Insert [Max]	18
Shell Size - Insert [Min]	15
Shell Size, MIL	D
Shielding	Shielded
Termination	Crimp

D38999/20JD Series

Part	Shell Size, MIL	Type	Note	Number of Positions	Orientation	Shell Material	Mounting Feature	Grade	Qualification	Shell Finish	Ingress Protection	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Housing Color	Connector Type	Contact Type	Insert Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Size	Primary Material	Contact Size	Includes	Material Flammability Rating	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Mating	Termination	Current Rating (Amps)	Applications	Color	Contact Size	Shell Size - Insert
Souriau-Sunbank by Eaton D38999/20JD97BN	D	For Female Sockets	Contacts Not Included	12	N	Composite	Flange	Military	MIL-DTL-38999 Series III	Cadmium	Environment Resistant	Circular	-65 ░C	347 °F	Unshielded	Olive Drab	Receptacle Housing	Crimp	Thermoplastic	97	15	4 8 16 20
Souriau-Sunbank by Eaton D38999/20JD35PCL	D	For Female Sockets	Contacts Not Included	6	C		Flange										Receptacle Housing	Crimp					Metal
Souriau-Sunbank by Eaton D38999/20JD15AN	D	For Male Pins	Contacts Not Included	15	N	Composite	Flange	Military	MIL-DTL-38999 Series III	Cadmium	Environment Resistant	Circular	-65 ░C	347 °F	Unshielded	Olive Drab	Receptacle Housing	Crimp	Thermoplastic	15	15			16 20
Souriau-Sunbank by Eaton D38999/20JD15SNL	D	For Female Sockets	Contacts Not Included	15	N		Flange				Waterproof		-65 ░C	200 °C		Silver	Receptacle Housing	Crimp	Thermoplastic				Metal		1 pc - 1 Insert Shell	UL94 V-0
Souriau-Sunbank by Eaton D38999/20JD19PN-LC	D	For Male Pins	Contacts Not Included	19	N	Composite	Flange	Military	MIL-DTL-38999 Series III	Cadmium	Environment Resistant	Circular	-65 ░C	347 °F	Unshielded	Olive Drab	Receptacle Housing	Crimp	Thermoplastic					20			19	15
Souriau-Sunbank by Eaton D38999/20JD18JC	D			18	C	Composite	Flange	Military	MIL-DTL-38999 Series III	Olive Drab Cadmium	Waterproof		-65 ░C	125 °C	Shielded		Receptacle Female Sockets		Thermoplastic	18	15		Composite			UL94 V-0			2.54 çm	100 çin	Copper Alloy	Gold	Crimp	7.5 A	Aerospace Aviation Military	Olive Drab
Souriau-Sunbank by Eaton D38999/20JD35AN	D	For Male Pins	Contacts Not Included	37	N	Composite	Flange	Military	MIL-DTL-38999 Series III	Cadmium	Environment Resistant	Circular	-65 ░C	347 °F	Unshielded	Olive Drab	Receptacle Housing	Crimp	Thermoplastic	35	15																22D
Souriau-Sunbank by Eaton D38999/20JD18HA	D			18	A	Composite	Flange	Military	MIL-DTL-38999 Series III	Olive Drab Cadmium	Waterproof		-65 ░C	125 °C	Shielded		Male Pins Receptacle		Thermoplastic	18	15		Composite			UL94 V-0			2.54 çm	100 çin	Copper Alloy	Gold	Crimp	7.5 A	Aerospace Aviation Military	Olive Drab
Souriau-Sunbank by Eaton D38999/20JD5JN	D				N	Composite	Flange	Military	MIL-DTL-38999 Series III	Olive Drab Cadmium	IP67 - Dust Tight Waterproof		-65 ░C	347 °F	Shielded		Receptacle Female Sockets		Thermoplastic				Composite						2.54 çm	100 çin	Copper Alloy	Gold	Crimp	13 A	Aviation Marine Military	Olive Drab		15-5
Souriau-Sunbank by Eaton D38999/20JD19BN	D	For Female Sockets	Contacts Not Included	19	N	Composite	Flange	Military	MIL-DTL-38999 Series III	Cadmium	Environment Resistant	Circular	-65 ░C	347 °F	Unshielded	Olive Drab	Receptacle Housing	Crimp	Thermoplastic					20			19	15

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	2	$ 129.38
		10	$ 119.03
		50	$ 109.51
		100	$ 100.75
		500	$ 92.69

Description

General part information

D38999/20JD Series

18 Position Circular Connector Receptacle, Female Sockets Crimp
