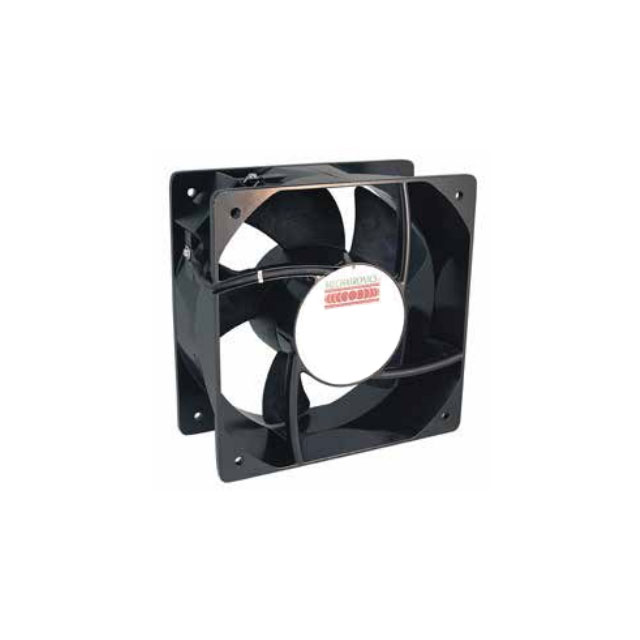

UF20TC23-BWHR
ActiveMechatronics Bearing Group
AC FAN AXIAL 205X205X72MM 230VAC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UF20TC23-BWHR
ActiveMechatronics Bearing Group
AC FAN AXIAL 205X205X72MM 230VAC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UF20TC23-BWHR |
|---|---|
| Air Flow | 710 CFM |
| Air Flow | 19.88 m³/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.52 A |
| Fan Type | Tubeaxial |
| Features | Permanent Split Capacitor Motor |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 73 dB(A) |
| Power (Watts) | 126 W |
| RPM | 3350 RPM |
| Size / Dimension [x] | 205.5 mm |
| Size / Dimension [y] | 205.5 mm |
| Static Pressure | 1.45 in H2O |
| Static Pressure | 361.2 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 230 VAC |
| Width [y] | 72 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 117.06 | |
| 10 | $ 105.20 | |||
| 25 | $ 103.72 | |||
| 50 | $ 97.06 | |||
| 100 | $ 94.83 | |||
Description
General part information
UF20T Series
Fan Tubeaxial 230VAC Square - 205.5mm L x 205.5mm H Ball 710.0 CFM (19.88mł/min) 2 Wire Leads
