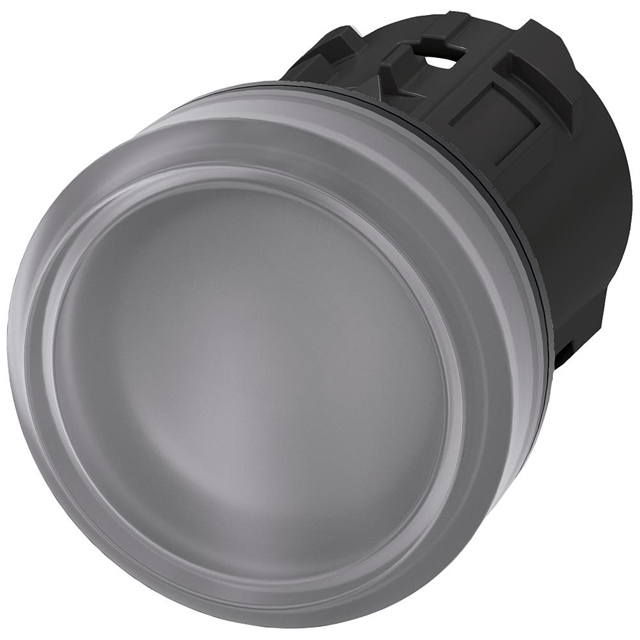

A6X30137855

Active

Siemens

INDICATOR LIGHT. CLEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A6X30137855

Active

Siemens

INDICATOR LIGHT. CLEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6X30137855

Ingress Protection	NEMA 1, IP67, NEMA 12, NEMA 2, NEMA 4, IP69K, NEMA 3, IP69, IP66, NEMA 13, NEMA 4X, NEMA 3R
Lamp Color	Clear
Lens Color	Colorless
Lens Size [diameter]	29.5 mm
Lens Transparency	Clear
Panel Cutout Dimensions	0.88 in
Panel Cutout Dimensions	22.3 mm
Panel Cutout Shape	Round
Type	LED

A6X3013 Series

Part	Lens Color	Lamp Color	Lens Transparency	Type	Panel Cutout Dimensions	Panel Cutout Dimensions	Panel Cutout Shape	Lens Size [diameter]	Ingress Protection
Siemens A6X30137740	Red	Red	Diffused	LED	0.88 in	22.3 mm	Round	22 mm	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X
Siemens A6X30139987	Blue	Blue	Diffused	LED	0.88 in	22.3 mm	Round	22 mm	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X
Siemens A6X30138478	Yellow	Yellow	Diffused	LED	0.88 in	22.3 mm	Round	22 mm	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X
Siemens A6X30137856	Colorless	Clear	Clear	LED	0.88 in	22.3 mm	Round	22 mm	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X
Siemens A6X30139986	Blue	Blue	Diffused	LED	0.88 in	22.3 mm	Round	22 mm	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X
Siemens A6X30137838	White	White	Diffused	LED	0.88 in	22.3 mm	Round	29.5 mm	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X
Siemens A6X30137742	Red	Red	Diffused	LED	0.88 in	22.3 mm	Round	22 mm	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X
Siemens A6X30138493	Blue	Blue	Diffused	LED	0.88 in	22.3 mm	Round	22 mm	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X
Siemens A6X30139982	Yellow	Yellow	Diffused	LED	0.88 in	22.3 mm	Round	22 mm	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X
Siemens A6X30137855	Colorless	Clear	Clear	LED	0.88 in	22.3 mm	Round	29.5 mm	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 24.54
		10	$ 19.21
		100	$ 16.78
		500	$ 15.39

Description

General part information

A6X3013 Series

LED Panel Indicator Clear Clear
