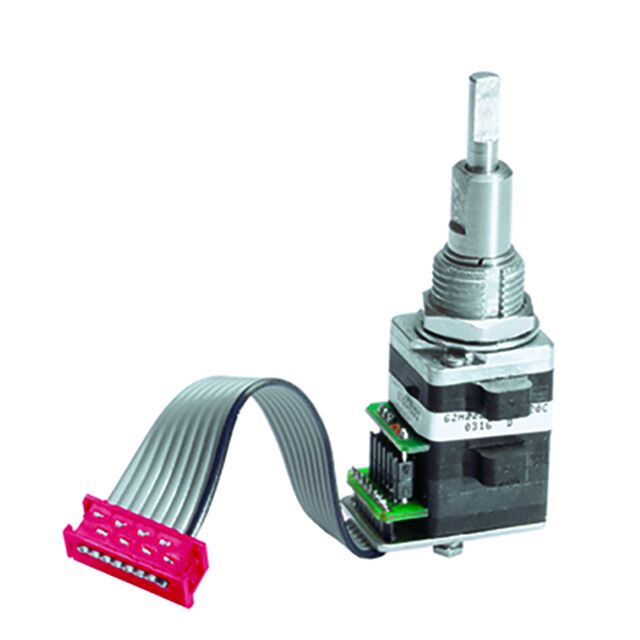

62H2222-H9-040C
ActiveGrayhill Inc.
OPTICAL ENCODER ROTARY INCREMENTAL FLAT 0.035N.M STRAIGHT DIGITAL SQUARE WAVE PANEL MOUNT CONNECTOR 4CPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
62H2222-H9-040C
ActiveGrayhill Inc.
OPTICAL ENCODER ROTARY INCREMENTAL FLAT 0.035N.M STRAIGHT DIGITAL SQUARE WAVE PANEL MOUNT CONNECTOR 4CPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 62H2222-H9-040C |
|---|---|
| Actuator Type | Concentric |
| Built in Switch | True |
| Detent | True |
| Encoder Type | Optical |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 16 |
| Rotational Life (Cycles Min) | 1M |
| Termination Style | Cable with Connector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 117.44 | |
| 5 | $ 99.72 | |||
| 10 | $ 92.70 | |||
| 25 | $ 83.91 | |||
| 50 | $ 77.62 | |||
| 100 | $ 71.62 | |||
Description
General part information
62H2222 Series
OPTICAL ENCODER ROTARY INCREMENTAL FLAT 0.035N.M STRAIGHT DIGITAL SQUARE WAVE PANEL MOUNT CONNECTOR 4CPR
