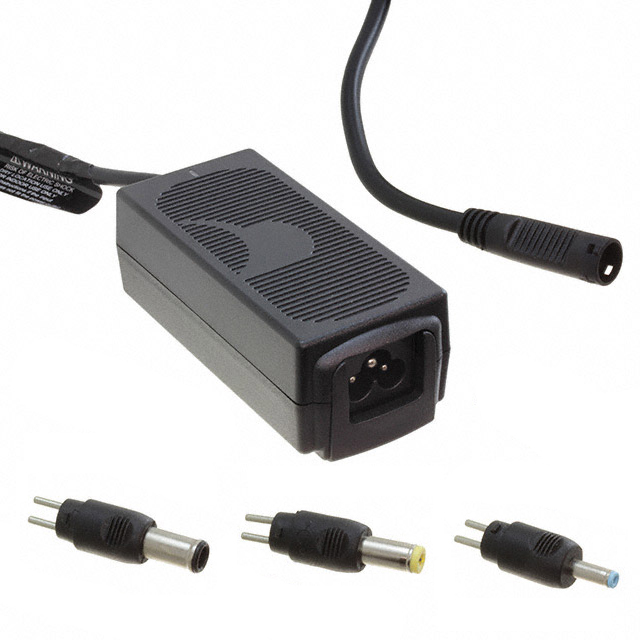

RR9LA4500T00-IMR6B
ActiveGlobTek, Inc.
AC/DC DSKTP/WALL MT ADAPT 5V 23W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RR9LA4500T00-IMR6B
ActiveGlobTek, Inc.
AC/DC DSKTP/WALL MT ADAPT 5V 23W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RR9LA4500T00-IMR6B |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | CE, RCM, LPS, EAC, FCC, CCC, S-Mark, PSE, Morocco, VCCI, cETLus, UKCA, UKRSepro, ETL, CB |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 4.5 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class I), Desktop |
| Input Type | Cord, Multi-Blade |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Barrel Plug Kit, 1.3mm x 3.5mm |
| Power (Watts) | 23 W |
| Region Utilized | International |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.7 mm |
| Size / Dimension [y] | 46.5 mm |
| Size / Dimension [y] | 1.83 in |
| Size / Dimension [z] | 38.2 mm |
| Size / Dimension [z] | 1.5 " |
| Standard Number | 1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.45 | |
| 5 | $ 16.19 | |||
| 10 | $ 15.94 | |||
| 25 | $ 15.18 | |||
| 60 | $ 14.67 | |||
| 120 | $ 13.66 | |||
| 300 | $ 13.46 | |||
Description
General part information
RR9LA4500 Series
5V 23 W AC/DC External Desktop, Wall Mount (Class I) Adapter Cord, Multi-Blade (Sold Separately) Input
