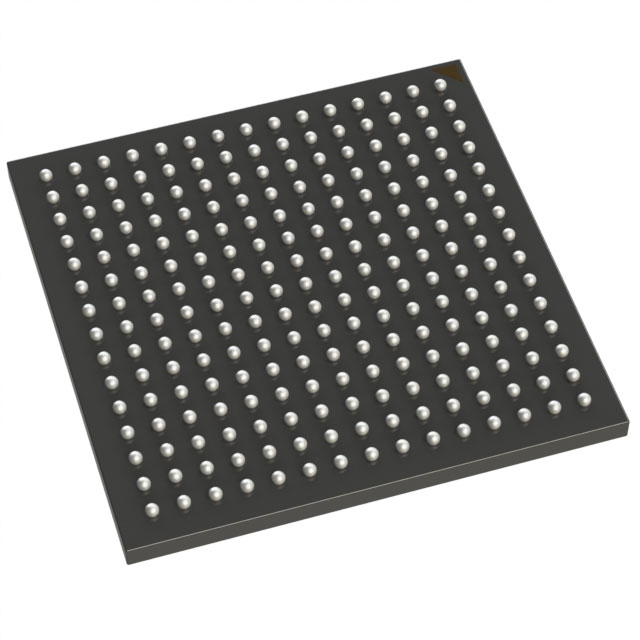

XA6SLX9-2CSG225Q

Active

AMD

IC FPGA 160 I/O 225CSBGA

Search across all available documentation for this part.

Active

AMD

IC FPGA 160 I/O 225CSBGA

Technical Specifications

Parameters and characteristics for this part

Specification	XA6SLX9-2CSG225Q

Grade	Automotive
Mounting Type	Surface Mount
Number of I/O	160
Number of LABs/CLBs	715
Number of Logic Elements/Cells	9152
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	225-LFBGA, CSPBGA
Qualification	AEC-Q100
Supplier Device Package	225-CSPBGA (13x13)
Total RAM Bits	589824

Part	Package / Case	Mounting Type	Number of LABs/CLBs	Total RAM Bits	Operating Temperature [Min]	Operating Temperature [Max]	Number of Logic Elements/Cells	Qualification	Grade	Supplier Device Package	Number of I/O
AMD XA6SLX9-2CSG225Q	225-LFBGA CSPBGA	Surface Mount	715	589824	-40 °C	125 ¯C	9152	AEC-Q100	Automotive	225-CSPBGA (13x13)	160
AMD XA6SLX9-3FTG256Q	256-LBGA	Surface Mount	715	589824	-40 °C	125 ¯C	9152	AEC-Q100	Automotive	256-FTBGA (17x17)	186
AMD XA6SLX9-2CSG225I	225-LFBGA CSPBGA	Surface Mount	715	589824	-40 C	100 °C	9152	AEC-Q100	Automotive	225-CSPBGA (13x13)	160
AMD XA6SLX9-2FTG256I	256-LBGA	Surface Mount	715	589824	-40 C	100 °C	9152	AEC-Q100	Automotive	256-FTBGA (17x17)	186

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	160	$ 55.44

General part information

Spartan®-6 LX XA Field Programmable Gate Array (FPGA) IC 160 589824 9152 225-LFBGA, CSPBGA

Technical documentation and resources

No documents available
