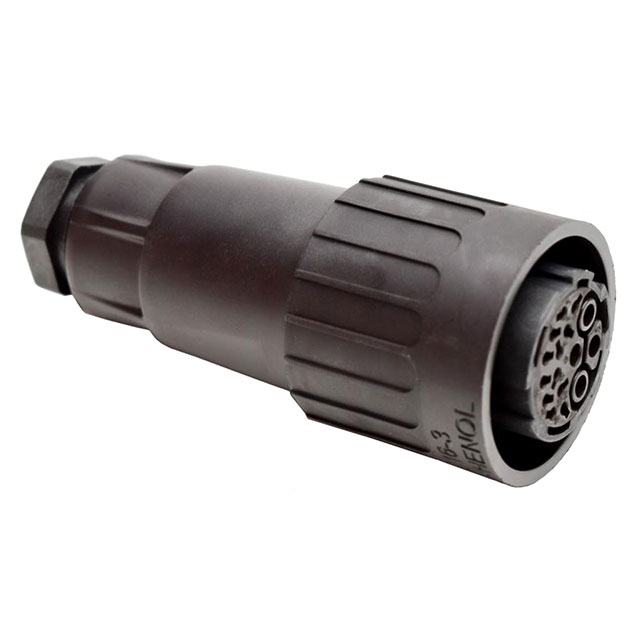

C01610D0150021
ActiveAmphenol Tuchel Industrial
CONN PLUG HSG FMALE 16POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C01610D0150021
ActiveAmphenol Tuchel Industrial
CONN PLUG HSG FMALE 16POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C01610D0150021 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 1.5 mm, 1.6 mm |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Housing Color | Black |
| Includes | 1 Backshell, 1 Cage Clamp, 1 Cable Nut, 1 Connector, 1 Gasket |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions [custom] | 12 |
| Number of Positions [custom] | 3 |
| Number of Positions [custom] | 16 |
| Number of Positions [custom] | PE |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size - Insert | 1 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.36 | |
| 10 | $ 11.58 | |||
| 25 | $ 11.20 | |||
Description
General part information
C01610D015 Series
16 (12 + 3 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
