KAE09LGGT

Active

E-Switch

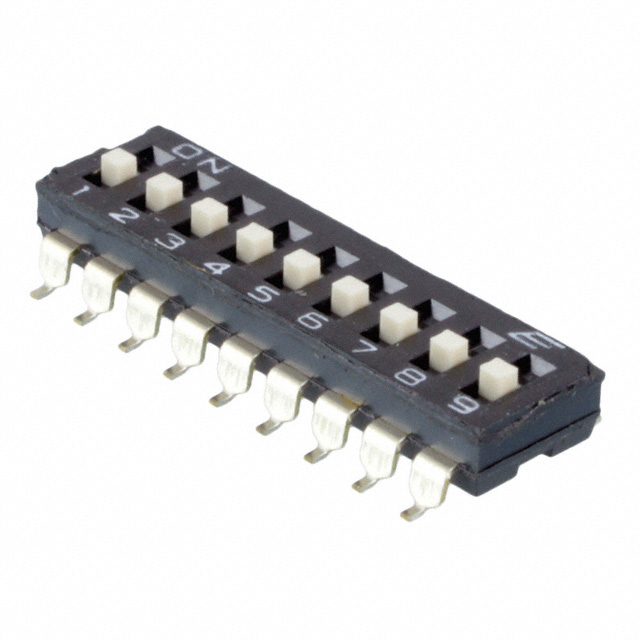

SWITCH: DIP-SWITCH; POLES NUMBER: 9; OFF-ON; 0.1A/50VDC; POS: 2; SMT

Deep-Dive with AI

Search across all available documentation for this part.

KAE09LGGT

Active

E-Switch

SWITCH: DIP-SWITCH; POLES NUMBER: 9; OFF-ON; 0.1A/50VDC; POS: 2; SMT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KAE09LGGT

Actuator Level	Raised
Actuator Type	Slide (Standard)
Circuit	SPST
Contact Finish	Gold
Contact Material	Copper
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	0.175 in
Height Above Board	4.45 mm
Length	0.94 in
Length	23.9 mm
Mechanical Life	2000 Cycles
Mounting Type	Surface Mount
Number of Positions	9
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	False

KAE04 Series

Part	Mechanical Life	Pitch [x]	Pitch	Pitch [x]	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Length	Length	Number of Positions	Contact Finish	Contact Material	Actuator Type	Termination Style	Current Rating (Amps)	Mounting Type	Electrical Life	Height Above Board	Height Above Board	Actuator Level	Length [x]	Length [x]	Features
E-Switch KAE08SHGT	2000 Cycles	0.1 in	Full	2.54 mm	24 VDC	85 °C	-20 C	SPST	0.841 in	21.36 mm	8	Gold	Copper	Slide (Standard)	PC Pin	25 mA	Through Hole	2000 Steps	3.6 mm	0.142 in	Flush Recessed
E-Switch KAE02LHGT	2000 Cycles	0.1 in	Full	2.54 mm	24 VDC	85 °C	-20 C	SPST	0.241 in	6.12 mm	2	Gold	Copper	Slide (Standard)	PC Pin	25 mA	Through Hole	2000 Steps	4.3 mm	0.169 in	Raised
E-Switch KAE02LGGR	2000 Cycles	0.1 in	Full	2.54 mm	24 VDC	85 °C	-20 C	SPST	0.241 in	6.12 mm	2	Gold	Copper	Slide (Standard)	Gull Wing	25 mA	Surface Mount	2000 Steps	4.45 mm	0.175 in	Raised
E-Switch KAE04LGGR	2000 Cycles	0.1 in	Full	2.54 mm	24 VDC	85 °C	-20 C	SPST			4	Gold	Copper	Slide (Standard)	Gull Wing	25 mA	Surface Mount	2000 Steps	4.45 mm	0.175 in	Raised	0.441 in	11.2 mm
E-Switch KAE08SGGT	2000 Cycles	0.1 in	Full	2.54 mm	24 VDC	85 °C	-20 C	SPST	0.841 in	21.36 mm	8	Gold	Copper	Slide (Standard)	Gull Wing	25 mA	Surface Mount	2000 Steps	3.75 mm	0.148 in	Flush Recessed
E-Switch KAE08LAGT	2000 Cycles	0.1 in	Full	2.54 mm	24 VDC	85 °C	-20 C	SPST	0.841 in	21.36 mm	8	Gold	Copper	Slide (Standard)	PC Pin	25 mA	Through Hole	2000 Steps	4.3 mm	0.169 in	Raised
E-Switch KAE08TGGR	2000 Cycles	0.1 in	Full	2.54 mm	24 VDC	85 °C	-20 C	SPST	0.841 in	21.36 mm	8	Gold	Copper	Slide (Standard)	Gull Wing	25 mA	Surface Mount	2000 Steps	3.75 mm	0.148 in	Flush Recessed			Tape Seal
E-Switch KAE09LGGT	2000 Cycles	0.1 in	Full	2.54 mm	24 VDC	85 °C	-20 C	SPST	0.94 in	23.9 mm	9	Gold	Copper	Slide (Standard)	Gull Wing	25 mA	Surface Mount	2000 Steps	4.45 mm	0.175 in	Raised
E-Switch KAE08LGGT	2000 Cycles	0.1 in	Full	2.54 mm	24 VDC	85 °C	-20 C	SPST	0.841 in	21.36 mm	8	Gold	Copper	Slide (Standard)	Gull Wing	25 mA	Surface Mount	2000 Steps	4.45 mm	0.175 in	Raised
E-Switch KAE04SHGT	2000 Cycles	0.1 in	Full	2.54 mm	24 VDC	85 °C	-20 C	SPST			4	Gold	Copper	Slide (Standard)	PC Pin	25 mA	Through Hole	2000 Steps	3.6 mm	0.142 in	Flush Recessed	0.441 in	11.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.84
		20	$ 1.79
		40	$ 1.63
		100	$ 1.42
		260	$ 1.28
		500	$ 1.19
		1000	$ 1.11
		2500	$ 1.00
		5000	$ 0.93

Description

General part information

KAE04 Series

Dip Switch SPST 9 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
