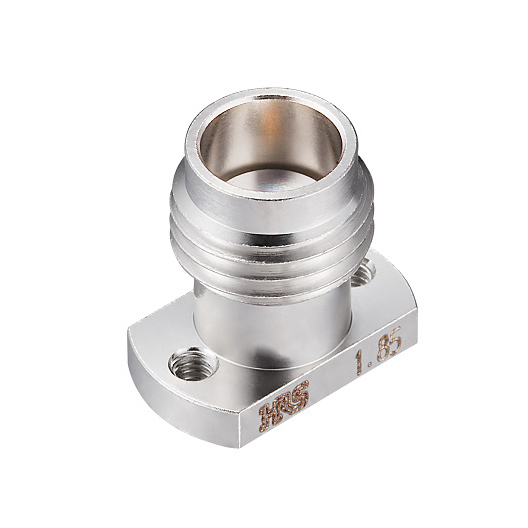

HV-R-SR2-SA(15)

Active

Hirose Electric USA, Inc.

RECEPTACLE, IEC, 1POS., SCREW FI

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

RECEPTACLE, IEC, 1POS., SCREW FI

Technical Specifications

Parameters and characteristics for this part

Specification	HV-R-SR2-SA(15)

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.85 mm
Connector Type	Receptacle, Female Socket
Contact Termination	Compression
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware
Frequency - Max [Max]	67 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Screw

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Mating Cycles	Shield Termination	Body Material	Connector Type	Center Contact Plating	Impedance	Connector Style	Body Finish	Dielectric Material	Contact Termination	Number of Ports	Frequency - Max [Max]	Center Contact Material	Housing Color	Mounting Feature
Hirose Electric USA, Inc. HV-R-SR2-SA(15)	-55 °C	125 °C	Mounting Hardware	Surface Mount	500	Screw	Brass	Female Socket Receptacle	Gold	50 Ohms	1.85 mm	Nickel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Compression	1	67 GHz	Beryllium Copper	Silver	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.85mm Connector Receptacle, Female Socket 50 Ohms Surface Mount Compression
